الميزات الرئيسية:

• Secure Mounting – Threaded on both ends, one side anchors into the roof beam, while the other connects to mounting brackets such as L-feet or mounting plate.
• Waterproof Protection – The flashing plate prevents water intrusion, safeguarding the roof from leaks and ensuring long-term durability.
• Versatile & Adjustable – Designed to work with various solar mounting systems, including pitched roof setups. The L-foot design allows for flexible height adjustments.
• Corrosion-Resistant & Highly Durable – Made from high-grade aluminum AL6005-T5 and stainless steel SUS 304, offering corrosion resistance and excellent load-bearing capacity.
• Easy & Fast Installation – The pre-drilled holes and pre-assembled components included lag bolts allow for a quick and secure installation, reducing labor costs and installation time.

كشركة مصنعة مع أكثر من 10 سنوات من الخبرة في ملحقات تركيب الأرفف الشمسية، نحن ملتزمون بتقديم أفضل المنتجات عالية الجودة والخدمة الاستثنائية لعملائنا.

Optimize your solar projects today with our high-performance L foot with asphalt shingle flashing! Contact us for bulk orders or customization options.

Bom List

Installing L Foot with Asphalt Shingle Flashing is essential for a secure and waterproof solar panel mounting system on asphalt shingle roofs. Follow this step-by-step guide to ensure a leak-proof, durable, and efficient installation.

🛠 Tools & Materials Needed:

✔ L Foot with Asphalt Shingle Flashing Kit (includes L-foot, flashing plate, lag bolt, EPDM sealing washer)
✔ Drill with appropriate drill bits
✔ Socket wrench
✔ Measuring tape & marker
✔ Caulking sealant (optional for extra waterproofing)
✔ Solar mounting rails & hardware

🔧 Step-by-Step Installation Guide

Step 1: Locate Roof Rafters

• Use a stud finder or tap method to find the roof rafters beneath the asphalt shingles.
• Mark the spots where the L feet will be installed, ensuring even spacing for proper weight distribution.

Step 2: Drill Pilot Holes

• Carefully lift the shingles at the marked locations.
• Use a drill bit slightly smaller than the lag bolt to create pilot holes in the rafters.

Step 3: Install Flashing Plate

• Slide the flashing plate under the shingle to maintain a waterproof seal.
• Ensure that the pre-drilled hole in the flashing aligns with the pilot hole in the roof.

Step 4: Attach the L Foot

• Position the L foot over the flashing plate.
• Insert the lag bolt through the L foot and flashing into the rafter.
• Tighten it securely using a socket wrench, ensuring a firm and stable connection.

Step 5: Apply Additional Waterproofing (Optional)

• Use roofing sealant or caulking around the lag bolt to enhance water resistance.

Step 6: Attach the Mounting Rails

• Secure the solar mounting rails to the L-foot using the provided bolts and nuts.
• Check for proper alignment and leveling before proceeding.

Step 7: Secure the Solar Panels

• Mount the solar panels onto the rails using mid and end clamps.
• Tighten all fasteners securely for a stable installation.

✅ Installation Tips:

✔ Always ensure proper alignment and even spacing for load distribution.
✔ Do not overtighten the lag bolt—tighten just enough for a secure hold.
✔ Double-check waterproofing to prevent roof leaks.
✔ Follow local building codes and manufacturer guidelines for best results.

📌 Why Use L Foot with Asphalt Shingle Flashing?

✔ Leak-Proof Protection – Prevents water intrusion and roof damage.
✔ Durable & Corrosion-Resistant – Made from AL6005-T5 aluminum & SUS 304 stainless steel.
✔ Strong & Secure – Provides a stable mounting base for solar panels.
✔ Easy Installation – Designed for quick setup with minimal labor.

Need High-Quality Solar Mounting Solutions?

📞 Contact us today for bulk orders, custom designs, and expert installation support! 🚀

الحوامل الكهروضوئية هي شركة تصنيع شاملة لنظام تركيب الألواح الشمسية. يمكننا إنتاج مكونات مختلفة لتركيب الألواح الشمسية بما في ذلك:

• القضبان
• الخطافات
• ل-الأقدام

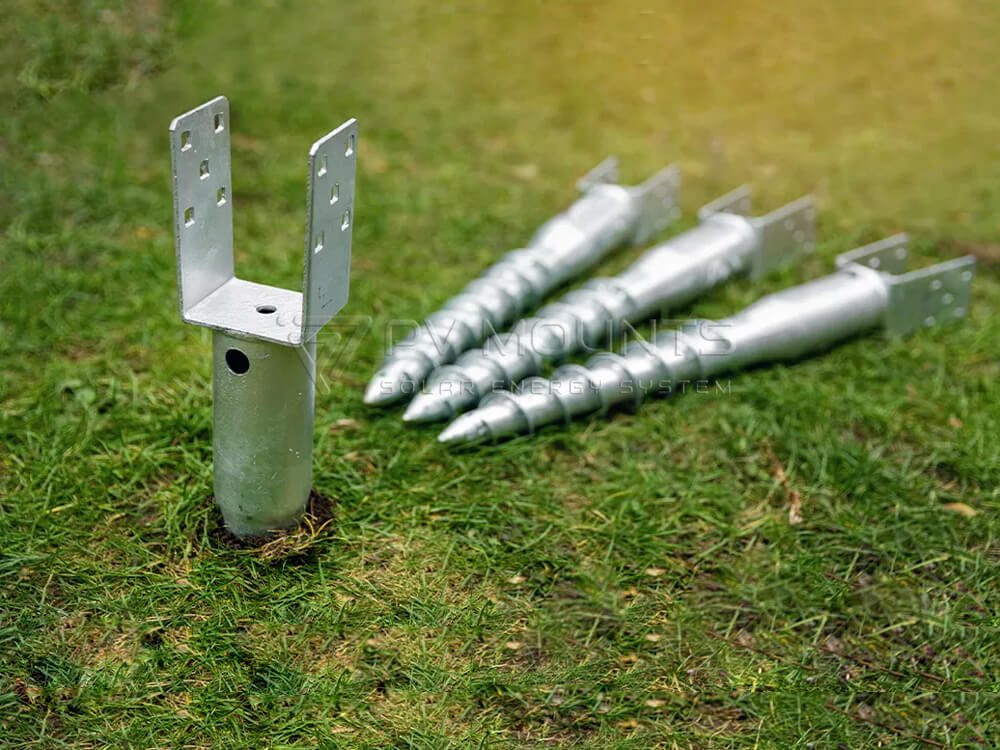

• براغي أرضية
