Caracteristici principale:

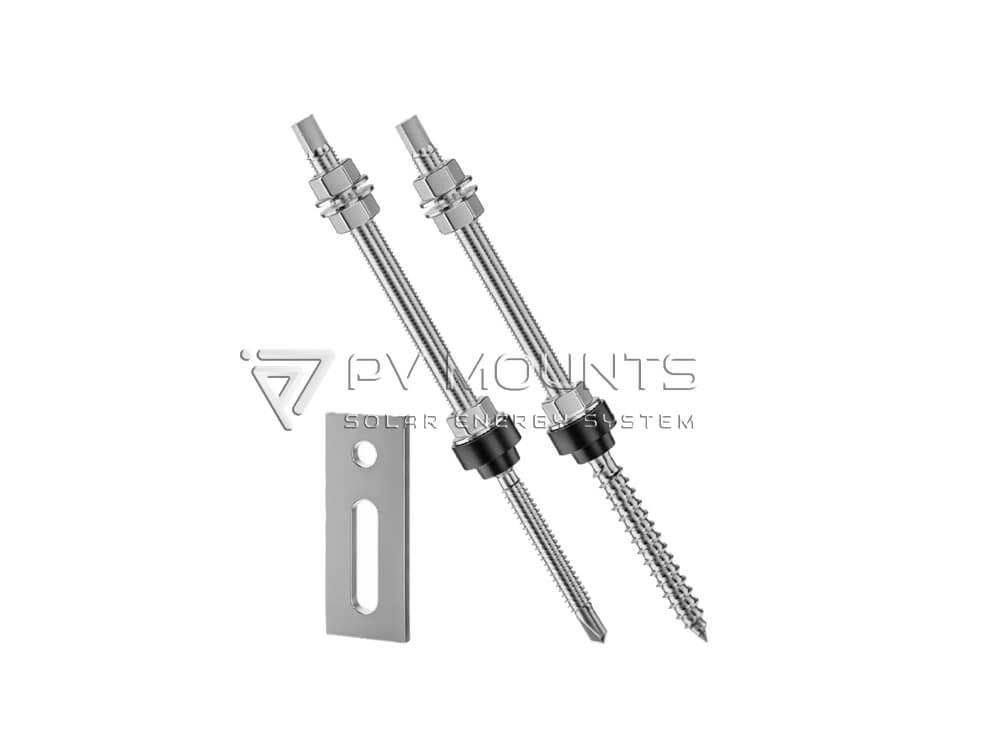

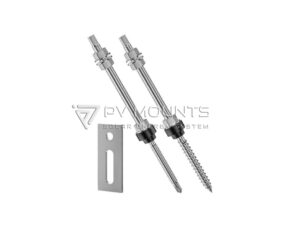

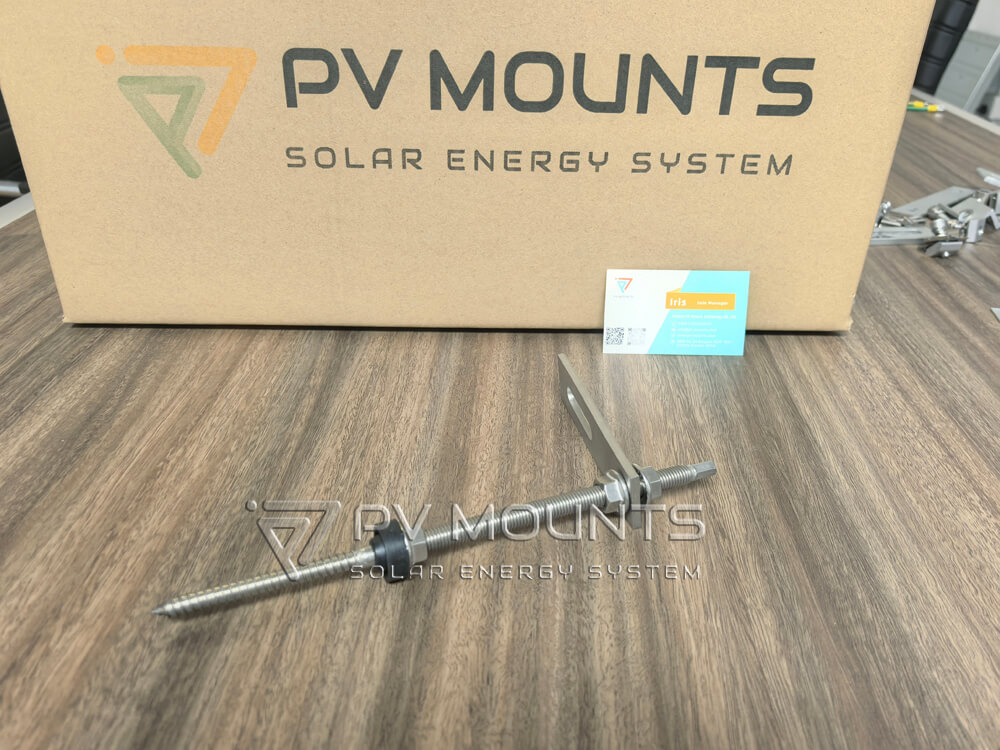

• Secure Mounting – Threaded on both ends, one side anchors into the roof beam, while the other connects to mounting brackets such as L-feet or mounting plate.
• Superior Weatherproofing – Equipped with an EPDM rubber washer to create a leak-proof seal when compressed against the roof sheet, ensuring long-term protection against water penetration.

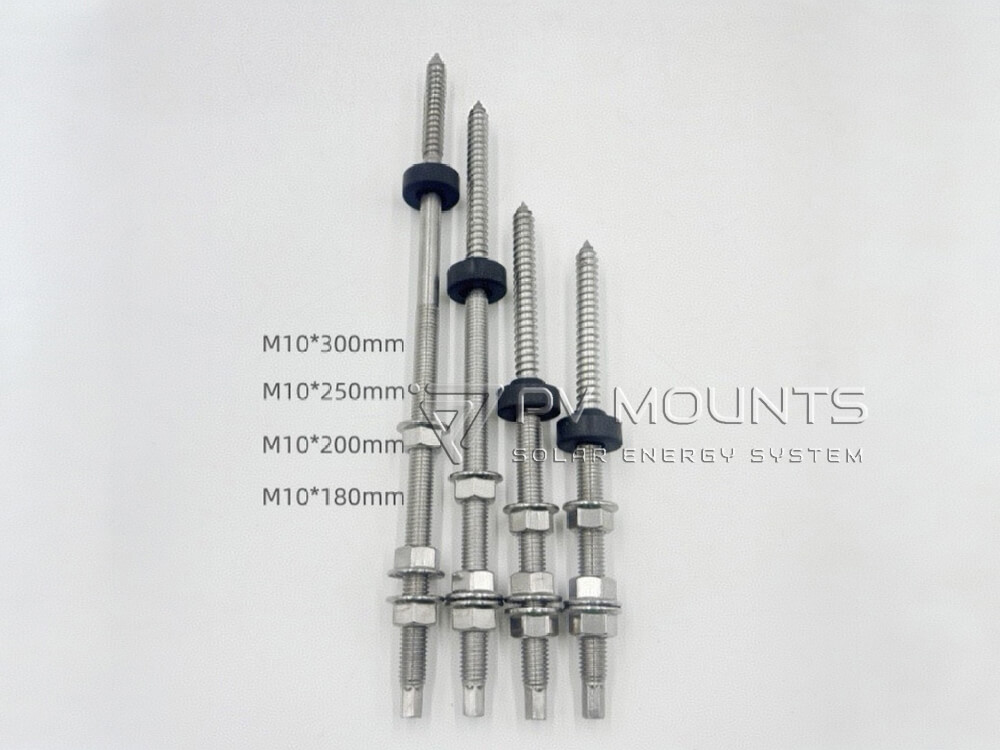

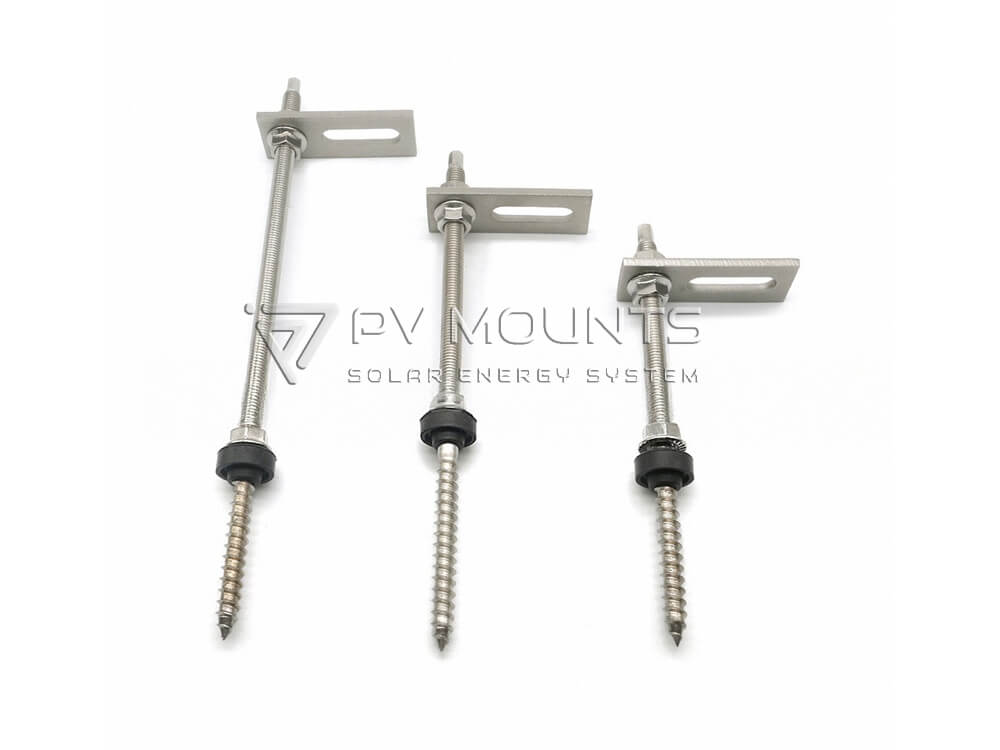

• Design reglabil – Available in multiple lengths (150mm-300mm) with a double-threaded ends,  adapter plate allow for height adjustability, enabling precise positioning of your solar panels, ensuring optimal tilt and alignment for maximum energy efficiency.
• Versatile Applications – Compatible with both wooden and steel beams. Available in pointed head for wooden rafters and flat head for steel purlins, making it adaptable to various roof structures.
• Corrosion-Resistant & Highly Durable – Made from SUS 304 stainless steel to withstand various environmental conditions, , these bolts feature a highly corrosion-resistant surface treatment, ensuring firmness and lonevity even in extreme environments.
• Easy & Fast Installation – Pre-assembled components allow for quick mounting and direct fixed onto steel purlins, reducing labor time and installation complexity.

As a manufacturer with over 10 years of experience in solar racking mounting accessories, we are committed to delivering the best quality products and exceptional service to our customers.

Upgrade your solar roof mounting system today with the Adapter Plate and Hanger Bolt system! Contact us for bulk orders or customization options.

How to Install Adapter Plate with Hanger Bolt for Solar Roof Mounting

Installing an Adapter Plate with Hanger Bolt for solar roof mounting is a straightforward process that ensures a secure and durable foundation for your solar panels. Follow these step-by-step instructions for a proper installation.

🛠 Tools & Materials Needed:

✔ Hanger bolts (with EPDM sealing washers)
✔ Adapter plates
✔ Socket wrench or drill
✔ Measuring tape & marker
✔ Solar mounting rails
✔ Fasteners & clamps

🔧 Step-by-Step Installation Guide

Step 1: Mark the Mounting Points

• Identify the purlins or structural framing of the roof.
• Measure and mark evenly spaced points where the hanger bolts will be installed. Ensure proper alignment for mounting rails.

Step 2: Drill Pilot Holes

• Use an appropriate drill bit to create pilot holes in the roofing material at the marked points.
• Ensure the holes align with the wooden or metal substructure beneath.

Step 3: Install the Hanger Bolts

• Insert the hanger bolts into the pilot holes and tighten them using a socket wrench or drill.
• Ensure the EPDM sealing washer is compressed properly to prevent water leakage.

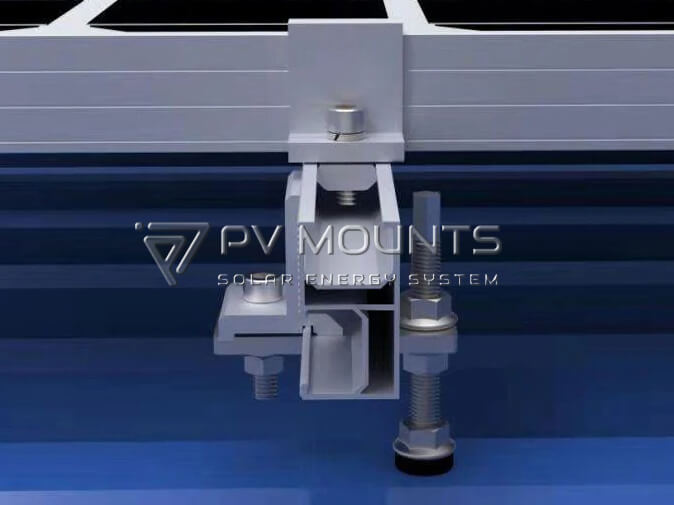

Step 4: Attach the Adapter Plate

• Place the adapter plate over the hanger bolt.
• Secure it in place using the provided nuts and washers.
• Adjust the height if necessary to ensure a level mounting surface.

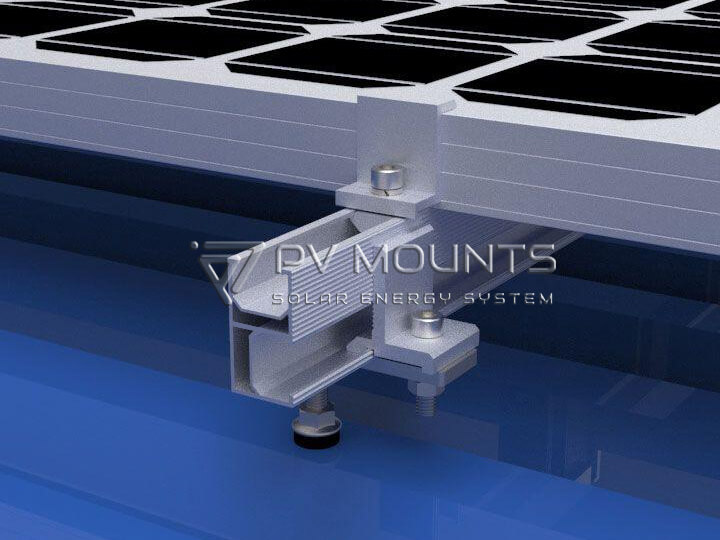

Step 5: Install the Solar Mounting Rails

• Attach the solar mounting rails to the adapter plate using bolts.
• Ensure they are properly aligned and tightly secured.

Step 6: Secure the Solar Panels

• Mount the solar panels onto the rails using mid and end clamps.
• Tighten the clamps securely to hold the panels in place.

✅ Installation Tips:

✔ Ensure all fasteners are tightened properly to prevent movement.
✔ Use EPDM sealing washers to maintain a watertight connection.
✔ Always align the rails correctly to optimize panel performance and prevent misalignment.

Your solar installation is now secure and ready to generate clean energy! 🌞⚡

Need More Assistance?

For bulk orders, custom configurations, or technical support, contact us today! 🚀

PV Mounts este un producător unic pentru sisteme de montare a panourilor solare. Putem produce diferite componente montate pe panouri solare, inclusiv:

• Șine
• Cârlige
• L-Picior
• Șuruburi de împământare
• Cleme pentru cusături permanente
• Mid Clamp & End Clamp
• Lug de legare la pământ
• Grounding Clip
• Cable Clip
• și mai mult
