Solar roof hooks are a critical structural component in tile roof photovoltaic mounting systems. They connect aluminum mounting rails to roof rafters and ensure that loads from solar panels are safely transferred to the building structure.

Proper spacing between roof hooks is essential for maintaining the structural stability of the solar mounting system. If hooks are spaced too far apart, mounting rails may experience excessive bending stress, leading to long-term structural fatigue or system instability.

For solar installers, EPC contractors, and system designers, understanding roof hook spacing and load distribution is an important part of engineering design. This guide explains the structural principles behind roof hook spacing, including environmental loads, rail bending behavior, and typical installation practices.

Structural Load Path in Tile Roof Solar Mounting Systems

Understanding how loads travel through a solar mounting system is the first step in structural design.

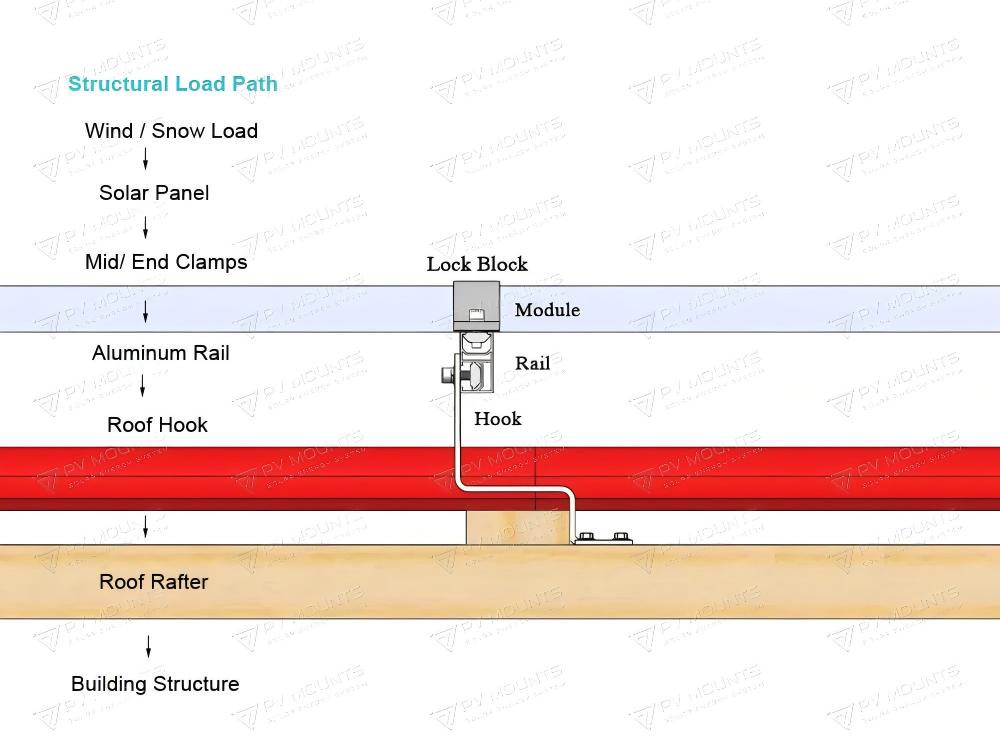

In tile roof solar installations, loads follow this path:

Roof tiles themselves do not carry structural loads. Instead, roof hooks bypass the tile layer and anchor directly into the structural rafters beneath the roof.

This load transfer system ensures that wind and snow loads are safely carried by the building structure.

Environmental Loads Acting on Solar Mounting Systems

Solar mounting systems must be designed to resist environmental loads over their entire service life.

The most important loads affecting rooftop solar structures include dead load, wind uplift, and snow load.

Dead Load

Dead load refers to the permanent weight of solar panels and mounting components.

Typical values include:

Solar panel weight
≈ 20–30 kg per module

Mounting hardware and rails
≈ 3–6 kg per module

Total system dead load is usually around 15–20 kg/m², which is relatively small compared with environmental loads.

Wind Uplift Forces

Wind uplift is typically the most critical design factor for rooftop solar systems.

When wind flows across the roof surface, negative pressure is created above the solar panels. This pressure difference generates uplift forces attempting to lift the solar array from the roof.

A simplified wind pressure estimation formula is:

q = 0.613 × V²

Where:

q = wind pressure (N/m²)
V = wind speed (m/s)

Example:

Wind speed = 30 m/s

q = 0.613 × 30²
q ≈ 551 N/m²

The uplift force acting on the panel can then be estimated by:

F = q × Cp × A

Where:

F = wind force
Cp = pressure coefficient
A = panel surface area

This simplified formula is commonly used for preliminary engineering estimation.

For detailed structural design in Europe, wind loads should be calculated according to Eurocode EN 1991-1-4 (Wind Actions).

Snow Loads

In regions with cold climates, snow accumulation may generate significant vertical loads on solar panels.

Snow load calculations for European projects generally follow Eurocode EN 1991-1-3 (Snow Loads).

Typical snow load values vary widely depending on geographic region, but they can significantly influence the design of mounting rail spans and roof hook spacing.

For European projects, wind and snow load calculations should follow Eurocode standards such as EN 1991-1-4 (Wind Actions) and EN 1991-1-3 (Snow Loads).

Roof Wind Pressure Zones

Wind pressure on rooftops is not uniform. Structural design standards typically divide roofs into several wind pressure zones.

Top View of Roof

┌─────────────────────
│          Zone A
│
│   ┌──────────────────
│   │      Zone B
│   │
│   │       Zone C
│   │
│   └──────────────────
│
└─────────────────────

Zone A – central roof area
Zone B – roof edges
Zone C – roof corners

Wind uplift forces are usually strongest in roof edge and corner zones. As a result, solar mounting systems in these areas often require reduced hook spacing or additional structural support.

Rail Span and Roof Hook Spacing

Solar mounting rails behave structurally like beams supported by roof hooks.

When loads act on the rail, bending stress occurs between the support points.

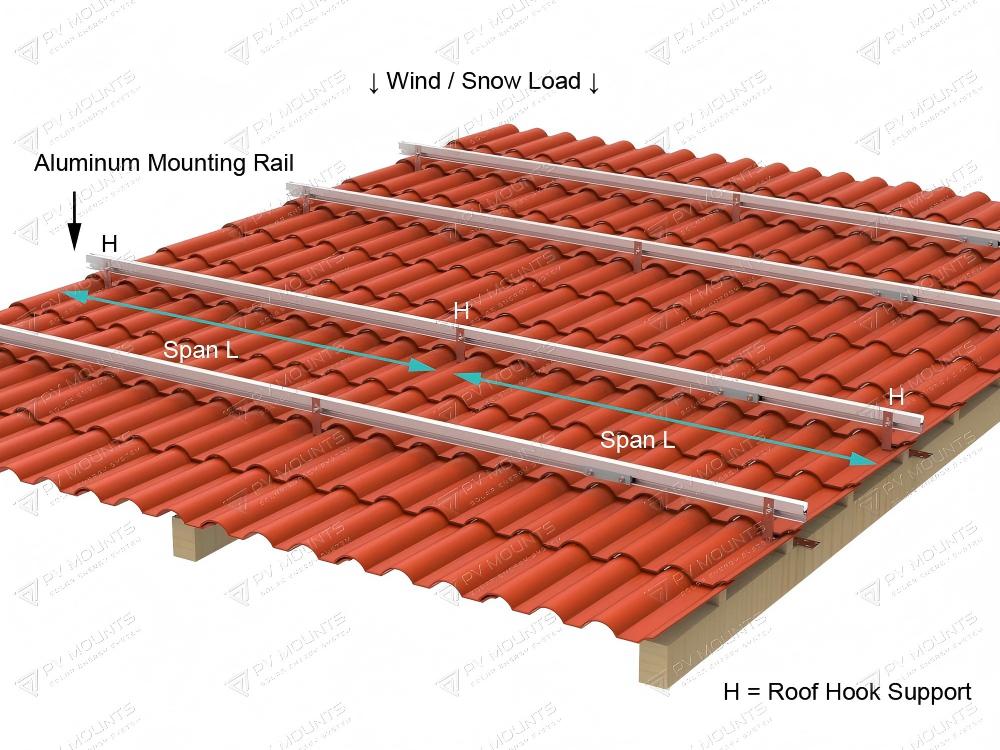

 Solar Rail (Beam)

H = Roof Hook Support

H───────────────H───────────────H
      Span L           Span L

        ↓ Wind / Snow Load ↓
═════════════════════════════════
        Aluminum Mounting Rail
═════════════════════════════════

The maximum bending moment in a simply supported beam under uniform load can be estimated by:

M = wL² / 8

Where:

M = bending moment
w = distributed load
L = span length between roof hooks

For example:

Rail span: 1.0m
Wind load: 0.6 kN/m²
Rail bending moment: M = wL²/8

This equation shows that bending moment increases rapidly as the span length increases. Therefore, reducing hook spacing can significantly improve rail structural performance.

Typical Roof Hook Spacing

In most residential tile roof solar installations, roof hook spacing typically ranges between:

800 mm – 1200 mm

The final spacing depends on several factors:

• mounting rail strength
• wind loads
• snow loads
• roof structure
• panel layout

Installations located in high wind regions or heavy snow areas may require smaller spacing to maintain structural safety.

Tile Roof Hook Installation Cross Section

A typical tile roof hook installation configuration is shown below:

        Solar Panel
        ───────────

        Șină de montare
════════════════════════

            │
            │ Roof Hook
            │
        ┌──────────────┐
        │ Roof Tile                      │
        └──────────────┘
             │
        ┌──────────────┐
        │ Roof Batten                 │
        └──────────────┘
             │
             ↓ Screw Fixing
        ┌──────────────┐
        │ Roof Rafter                  │
        └──────────────┘

The roof hook passes through the tile layer and is fastened directly into the roof rafter using structural screws. This ensures that loads are transferred safely into the structural roof framework.

Mechanical Testing of Solar Roof Hooks

High-quality solar roof hooks should be validated through mechanical load testing to ensure long-term reliability.

Typical tests include:

• static vertical load testing
• wind uplift resistance testing
• fatigue testing under cyclic loads

Example specifications for stainless steel roof hooks may include:

Material
SUS304 oțel inoxidabil

Grosime
5–6 mm

Typical mechanical performance:

Vertical load capacity
≈ 2000 – 2500 N

Wind uplift resistance
≈ 1500 – 2000 N

Actual load capacity may vary depending on hook design, material thickness, and fastening configuration.

In a word, Typical stainless steel solar roof hooks (SUS304, 5–6mm thickness) can withstand vertical loads around 2000–2500 N depending on the design and installation method.

Best Installation Practices

To ensure safe and reliable solar mounting systems, installers should follow several best practices:

• always anchor roof hooks directly into roof rafters
• maintain consistent hook spacing along mounting rails
• verify rail alignment before installing solar panels
• reduce hook spacing in high wind zones or roof edges

Proper installation practices help ensure long-term structural stability of rooftop solar systems.

Engineering Disclaimer

The calculations and examples provided in this article are simplified engineering explanations intended for educational purposes.

Actual solar mounting system design should consider project-specific factors such as:

• local wind speed
• snow loads
• roof structure
• mounting rail strength

For large solar installations, structural verification by qualified engineers may be required to ensure compliance with applicable building standards.

Concluzie

Roof hook spacing is a critical factor in the structural design of tile roof solar mounting systems. Proper spacing ensures that loads from solar panels are evenly distributed along mounting rails and safely transferred into the roof structure.

By considering environmental loads, rail structural behavior, and proper installation practices, solar installers and system designers can create durable and reliable rooftop solar installations.

Careful design and high-quality mounting components are essential for achieving long-term performance and safety in solar roof mounting systems.

---
