Tile Roof Hook for Solar Mounting System PVM-TH-08

Tile Roof Hook for Solar Mounting System PVM-TH-08

Upgrade your solar installation with our Quick Mount PV Tile Hook, designed for residential and commercial applications. This innovative, pre-assembled system simplifies installation, requiring only a hexagon key and standard toolkits, reducing labor time and preventing corrosion.

Our solar curved roof tile hooks ensure fast, drill-free installation using hexagon socket head bolts and T sliding blocks. With adjustable length and position, they provide maximum flexibility for tile bolt connections—no drilling, welding, or tile penetration required, maintaining excellent waterproof performance.

Item No.:PVM-TH-08
Shipping Port:Xiamen
Material

Stainless Steel SUS 304

Color Natrual & Black
Certifications for Solar Pv Cable Clips PVM-CC-03​

Share to

Bom ListMaterialQuantity
8# Tile Roof HookSUS3041
M8x25 hex socket head boltSUS3041
M8 spring washerSUS 3041
M8 lock washerSUS 3041
SC6.3x80mm hex head wood screw  & EPDM washerSUS 3043
PVM NutAl6005-T51


Key Features & Benefits:

Superior Strength & Durability

  • Made from SUS304 stainless steel, ensuring maximum corrosion resistance and long-lasting performance in all weather conditions.
  • Guaranteed for 10 years with a lifespan of up to 25 years.

Effortless Installation & Time-Saving Design

  • Pre-assembled components eliminate complex assembly steps, reducing labor costs and installation time.
  • Compatible with PVMOUNTS solar rails and D-modules, allowing for a seamless setup using just a single hex key and basic tools.
  • No drilling or welding required—quick and secure attachment to the wooden batten beneath the tile.

Adjustable & Universal Compatibility

  • Flexible, slotted design allows easy length and position adjustments, accommodating various tile types and bolt connections.
  • Works with all major framed solar panel brands, making it a universal racking system.
  • No need to pierce the tile surface, ensuring superior waterproof performance and maintaining roof integrity.

Customized Solutions for Any Roof Type

  • Custom-made tile hooks available based on tile specifications, ensuring a perfect fit for any flat, curved, or 90-degree tile roof.
  • Tailored solutions for wholesalers, B2B customers, B2C platforms, brand manufacturers, and solar construction installers.
Technical Parameter
Wind load:Max 60m/s
Snow load:Max 1.4KN/m
Size

180x50mm

Surface:Sandblasted
Service:

OEM/ODM

Customized according to your roof tile type!
Hook size, adjustable space, thickness, and material are all customized!

Installation site:Pitched Roof
Description:
  • Non-adjustable, Bottom Mounting
  • Fix rail to roman tile roof
  • Vertical Curved with 12 mounting holes
Suitable for:
  • W tile Roof
  • S tile roof
  • Flat tile roof
  • Slate roof
Standard

AS/NZS 1170.2/JIS C 8955:2017/ISO9001/UL1565/DIN 1055

Tile Roof Hook Series,

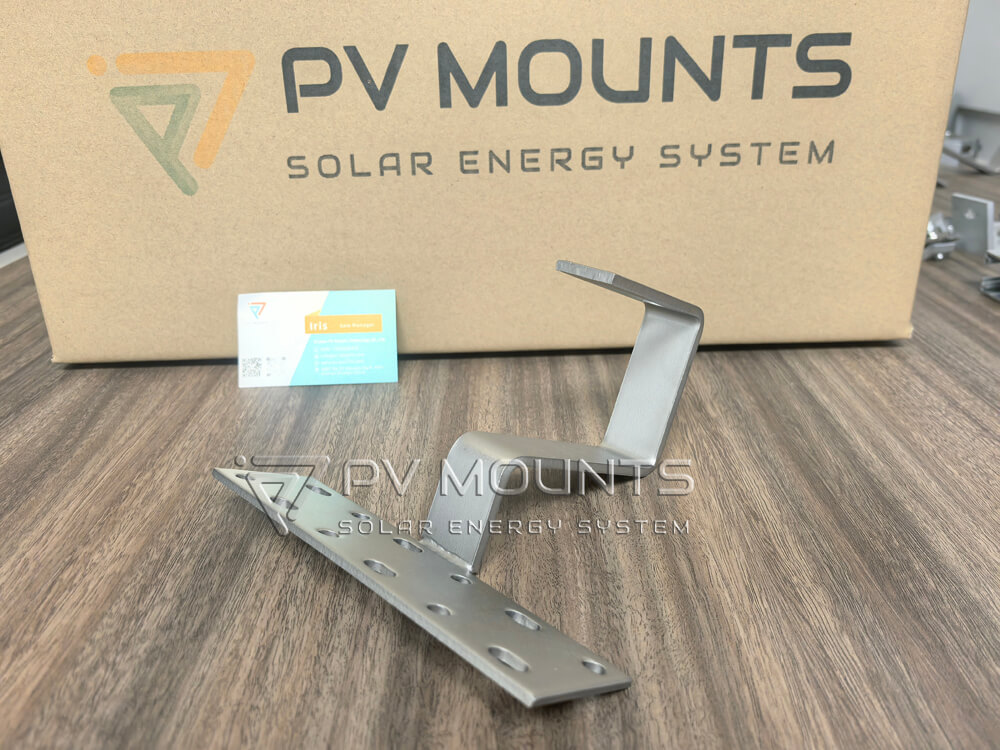

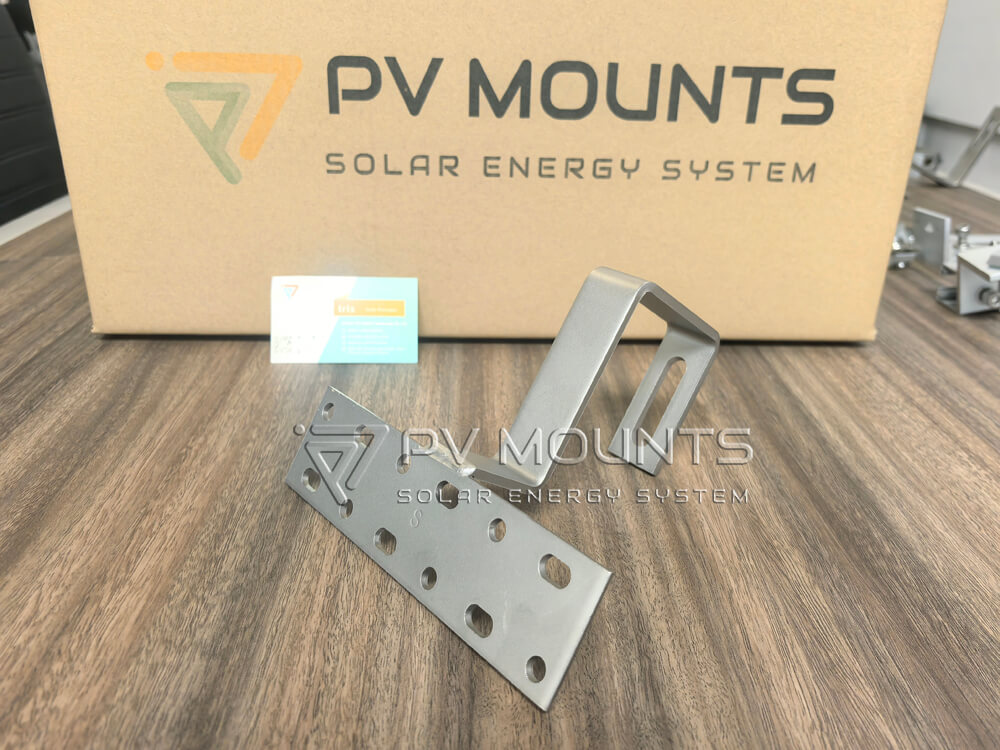

all kinds of tile roof hook types for solar bracket mounting (4)

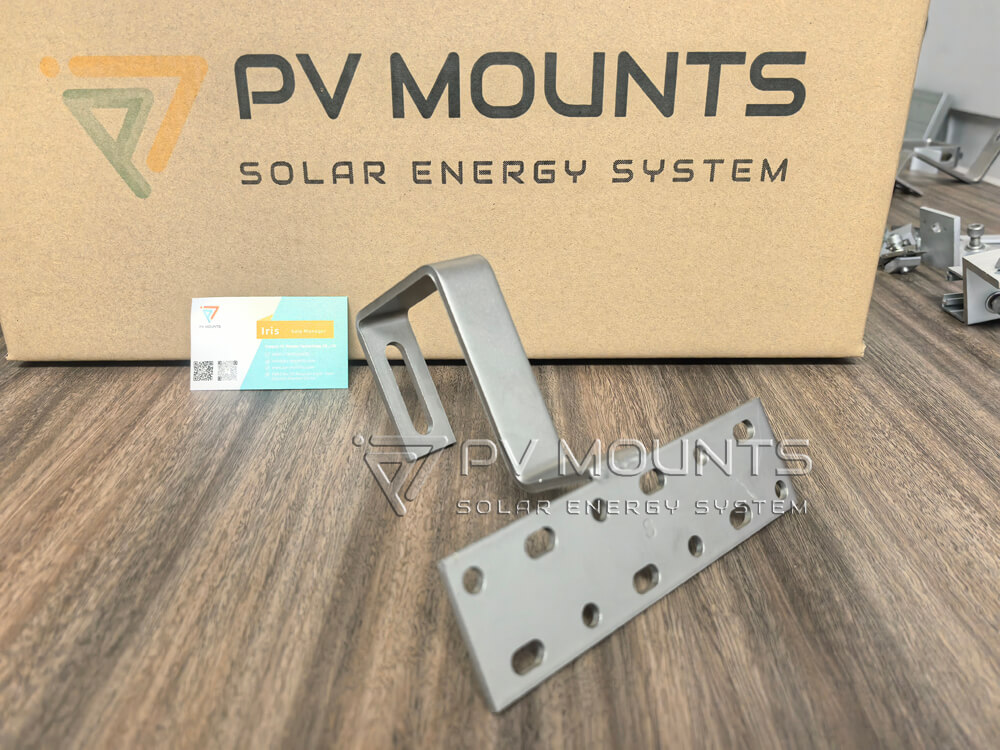

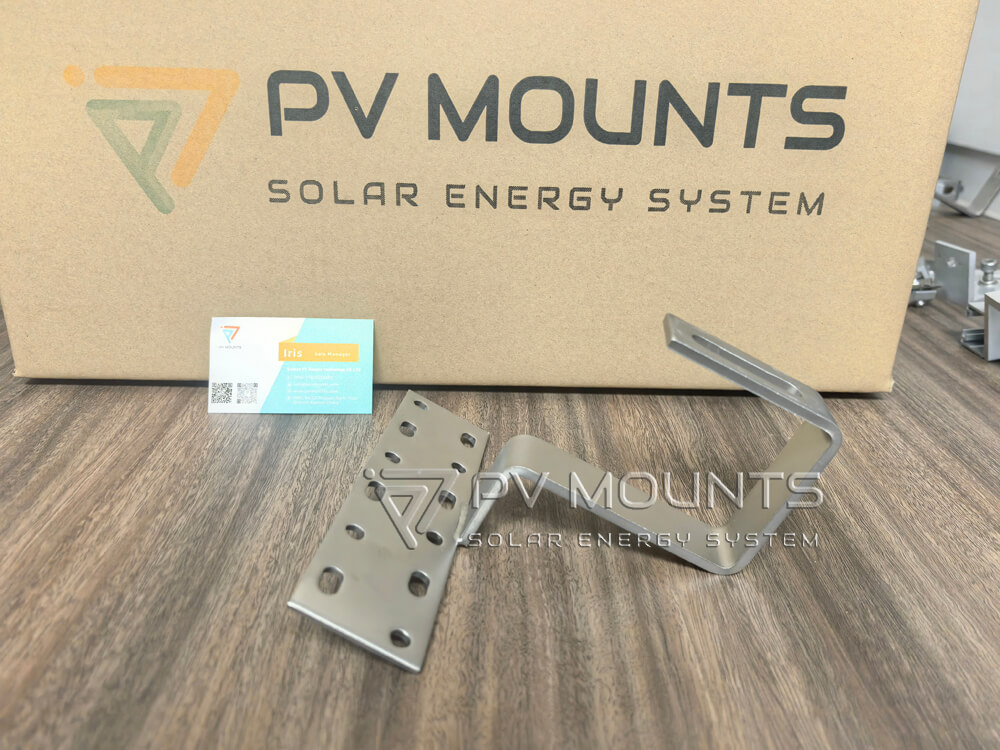

all kinds of tile roof hook types for solar bracket mounting (2)

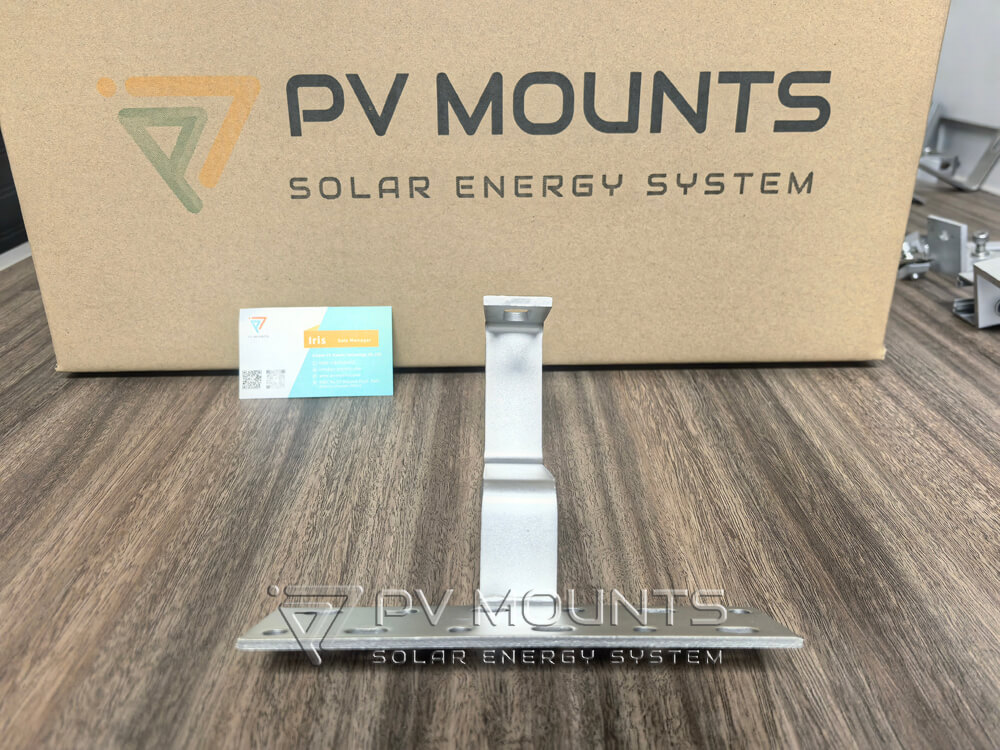

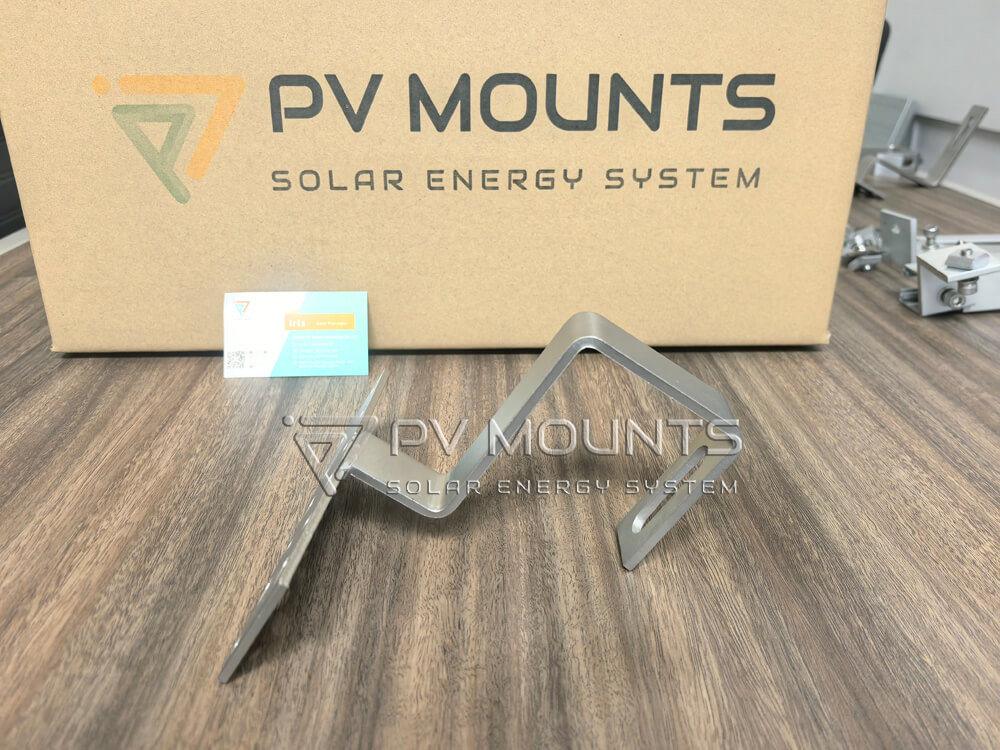

all kinds of tile roof hook types for solar bracket mounting (3)

Ideal for:

  • Residential and commercial solar PV installations on tile roofs.
  • EPC contractor, Wholesalers and installers seeking a high-quality, adaptable solution for photovoltaic mounting systems.

🔧 Choose PVMOUNTS for precision, reliability, and seamless solar mounting. Contact us today for customized solutions tailored to your project needs!

🔗 Keywords:

Tile roof hook for solar mounting, Solar Flat Tile Roof Hook, Roof Hooks For Photovoltaics On Roofs With Tile Roofing, Solar Panel Roof Tile Hooks, SUS304 tile roof hook, stainless steel roof hook, stainless steel 304 roof hook, tile roof hook, customized tile roof hook, tile roof attachment, 90-degree tile roof hook, curved tile roof hook.

Factory tour for production of solar panel mounting systems

Ceramic Tile Roof Solar Mounting Stainless Steel Hook 180° PVM-TH-08 drawing (2)

Installing a tile roof hook for a solar mounting system requires careful handling to ensure a secure and waterproof installation. Here’s a step-by-step guide:

Tools & Materials Required:

  • Tile roof hooks (SUS304 stainless steel recommended)
  • Wood screws or lag bolts
  • Drill with appropriate drill bits
  • Wrench or socket set
  • Sealant (optional for extra waterproofing)
  • Measuring tape
  • Chalk line

Installation Steps:

1. Locate the Rafters

  • Use a stud finder or tap the roof surface to identify the wooden rafters beneath the tiles.
  • Mark the rafter positions using a chalk line.

2. Carefully Remove the Tile

  • Gently lift and slide out the designated roof tile using a pry bar or similar tool.
  • Be cautious not to break the tile.

3. Position the Roof Hook

  • Align the roof hook directly over the rafter for maximum strength.
  • Ensure the hook extends outwards where the solar rail will be mounted.

4. Secure the Hook to the Rafter

  • Drill pilot holes into the rafter to prevent wood splitting.
  • Fasten the hook using stainless steel wood screws or lag bolts.
  • Ensure the hook is firmly secured and does not move.

5. Reinstall the Tile

  • Carefully place the removed tile back over the installed hook.
  • If necessary, slightly modify or trim the underside of the tile to fit around the hook.
  • Ensure the tile sits properly to maintain waterproofing.

6. Install the Mounting Rails

  • Attach aluminum mounting rails to the roof hooks using bolts.
  • Check for alignment and adjust as needed.

7. Fasten Solar Modules

  • Use mid clamps and end clamps to secure solar panels onto the rails.
  • Tighten all bolts securely.

8. Final Inspection

  • Ensure all components are properly tightened.
  • Check for any gaps or loose tiles.
  • Apply additional sealant if needed for extra waterproofing.

Additional Tips:

Use stainless steel fasteners to prevent corrosion.
Space the hooks evenly according to engineering load calculations.
Ensure proper drainage by avoiding blockage of water flow under the tiles.

Would you like a visual guide or installation video recommendations?We offer installation guide including images, instruction as well as videos to help our customer mount the system easily and fast.
