Metal Roof Solar Mounting System: The Ultimate 2025 Installation & Buyer Guide

1. Introduction

Installing solar panels on metal roofs is a highly efficient solution for residential and commercial projects. A proper metal roof solar mounting system ensures structural integrity, reduces installation time, and maximizes panel longevity. At Montagens fotovoltaicas, we specialize in solar roof mounting attachments, including L feet, mini rails, standing seam clamps, adjustable tilt kits, and rails, helping installers achieve professional-grade installations.

2. Why Metal Roof Solar Installations Require Specialized Hardware

Metal roofs differ from other roof types in several ways:

• Durabilidade: Metal sheets can support mounted solar panels, but improper clamps can deform panels or roof sheets.
• Variations in Roof Profiles: Standing seam, trapezoidal, and corrugated metal roofs each require specialized clamps and rails.
• Thermal Expansion: Metal expands and contracts with temperature, requiring hardware that accommodates movement.
• Non-penetration requirements: Especially for standing seam roofs, avoiding roof penetration prevents leaks.

Suggested image: Comparison of standing seam vs corrugated metal roof mounting

3. Overview of Metal Roof Types

Different metal roof types demand tailored mounting solutions:

Tipo de telhado	Recommended Attachment	Notes
Standing Seam	Grampo de costura em pé	No roof penetration; compatible with PV rails
Corrugated Metal	L Feet or Mini Rails	Use self-drilling screws; ensure proper EPDM or gasket if needed
Trapezoidal	L Feet or Mini Rails	Pre-drilled anchor points for strong connection
Custom Profiles	Adjustable Tilt Kit	Accommodates module orientation and pitch

4. Essential Mounting Accessories for Metal Roofs

Proper hardware de montagem solar is key to reliable installation:

• L Feet: Attach rails to roof, adjust height for airflow

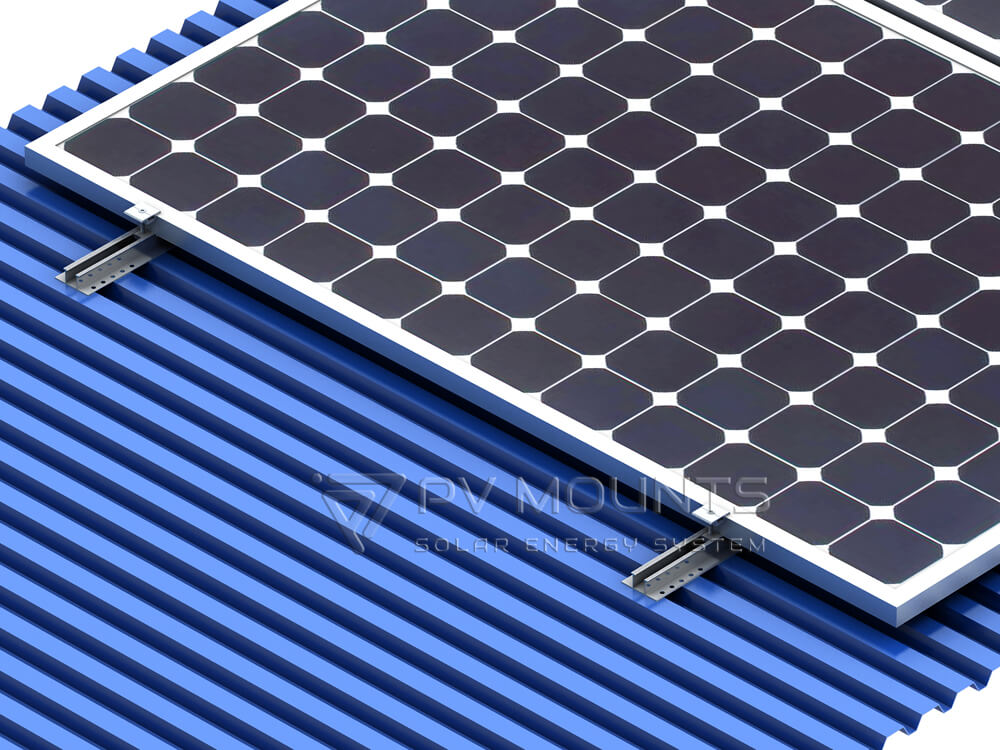

• Mini Rails: Support modules in flexible layouts
• Standing Seam Clamps: Secure modules without drilling, preserving roof integrity
• Adjustable Tilt Kits: Optimize solar angle for seasonal performance
• Rails and Fasteners: High-strength aluminum rails and stainless steel hardware for longevity

Suggested image: Collection of L feet, mini rails, clamps, and adjustable tilt kits

5. Step-by-Step Installation Guide

5.1 Preparing the Roof Surface

• Inspect roof for damage or rust
• Clean surface for proper adhesion
• Measure rafter and seam spacing

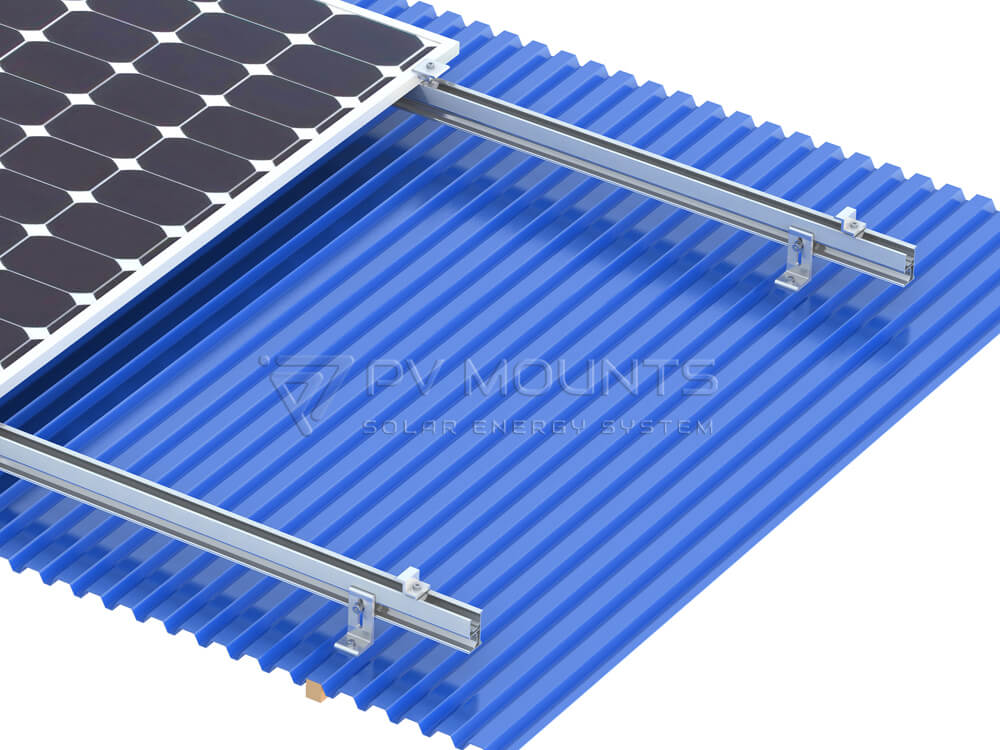

5.2 Installing L Feet and Rails

• Position L feet on pre-drilled anchors
• Use stainless steel bolts, torqued to specification
• Attach rails ensuring alignment and level

Suggested image: L feet and rail installation diagram

5.3 Standing Seam Clamp Installation

Slide clamp over seam

• Tighten with torque wrench
• Attach rail to clamp

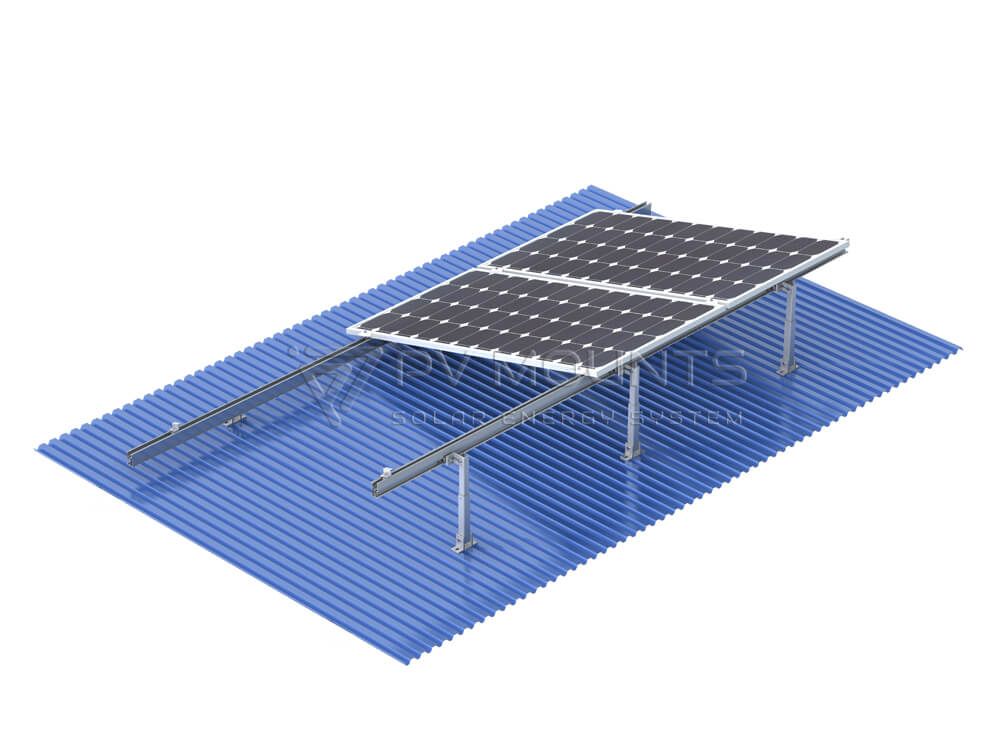

5.4 Adjustable Tilt Kit Installation

• Mount adjustable tilt kit where roof pitch is suboptimal
• Secure rails on tilt brackets
• Adjust angle for maximum solar irradiance

Suggested image: Adjustable tilt kit installation

5.5 Securing Solar Panels

• Attach solar modules with mid and end clamps
• Verify torque specification
• Ensure uniform spacing and flush alignment

5.6 Cable Management and Grounding

• Use UV-resistant cable ties
• Route cables along rails or clips
• Attach grounding lugs to rail and module frame

Suggested image: Cable routing and grounding detail

6. Common Mistakes to Avoid

• Over-tightening clamps causing panel or roof damage
• Misalignment of rails leading to stress on modules
• Using non-compatible hardware for roof profile
• Neglecting grounding or cable management

7. Maintenance Tips for Long-Term Performance

• Inspect clamps and rails annually
• Clean debris around panels
• Check torque after extreme weather events
• Replace rusted or damaged hardware promptly

8. Choosing the Right Solar Roof Mounting System Manufacturer

• Evaluate experience in metal roof systems
• Look for full hardware range: L feet, mini rails, clamps, adjustable tilt kits
• Check for OEM/ODM customization
• Verify material certifications: SUS304, aluminum alloys
• Montagens fotovoltaicas provides tailored solutions for global solar project installers

9. Cost and ROI Considerations

• Proper attachment selection reduces installation time
• High-quality clamps reduce maintenance costs
• ROI improves with durable, non-penetrating solutions
• Adjustable tilt kits increase energy yield

10. Frequently Asked Questions (FAQs)

Q1. Can I install solar panels on any metal roof?
Yes, as long as the roof profile and material are compatible with the correct attachment.

Q2. Are standing seam clamps really non-penetrating?
Yes, they attach directly to the seam without drilling, preserving roof waterproofing.

Q3. What is the difference between L feet and mini rails?
L feet support standard rails; mini rails are for smaller panels or flexible configurations.

Q4. Do adjustable tilt kits improve energy yield?
Yes, they allow seasonal angle adjustments, optimizing irradiance collection.

Q5. How do I maintain a metal roof PV system?
Regular inspection, cleaning, torque check, and replacing damaged hardware.

Q6. Can PV Mounts customize hardware for my project?
Absolutely, we provide OEM/ODM solutions for unique roof profiles and solar layouts.

11. Conclusion

At Montagens fotovoltaicas, we deliver a complete range of metal roof solar mounting attachments, including L feet, mini rails, standing seam clamps, adjustable tilt kits, and rails. Our products are designed for faster installation, structural reliability, and long-term performance.

👉 Contact PV Mounts today for samples, drawings, or bulk orders. Our engineering team will help you select the ideal configuration for your project.
