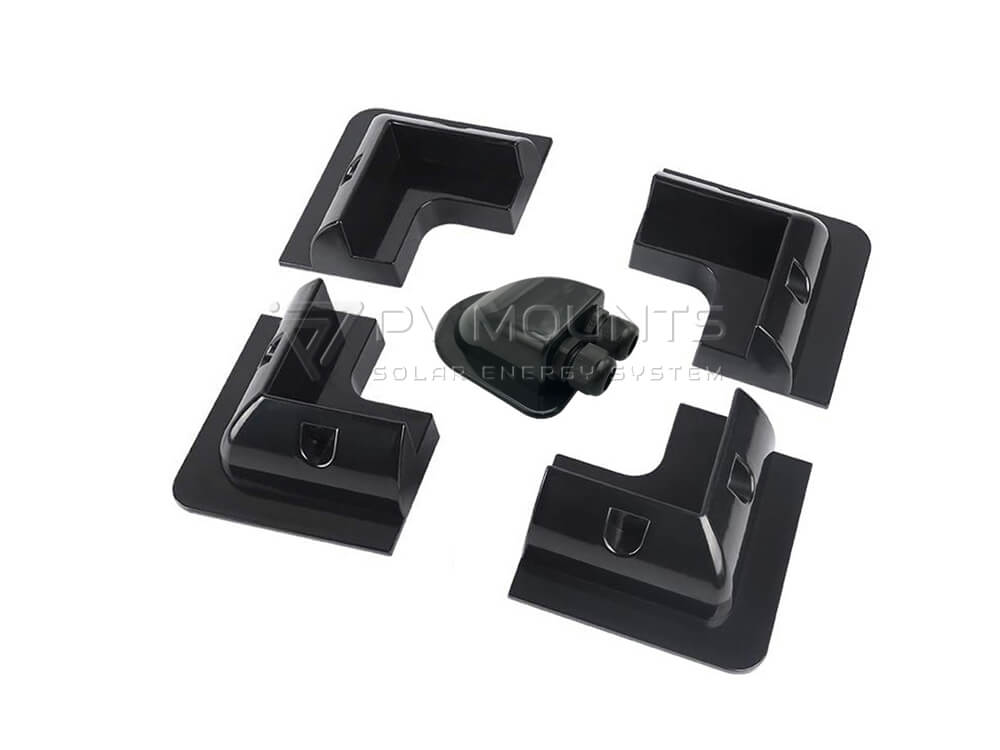

ABS solar mounting brackets are designed for secure and easy solar panel installation on RV, boats, camper, caravan, marine and flat roofs.

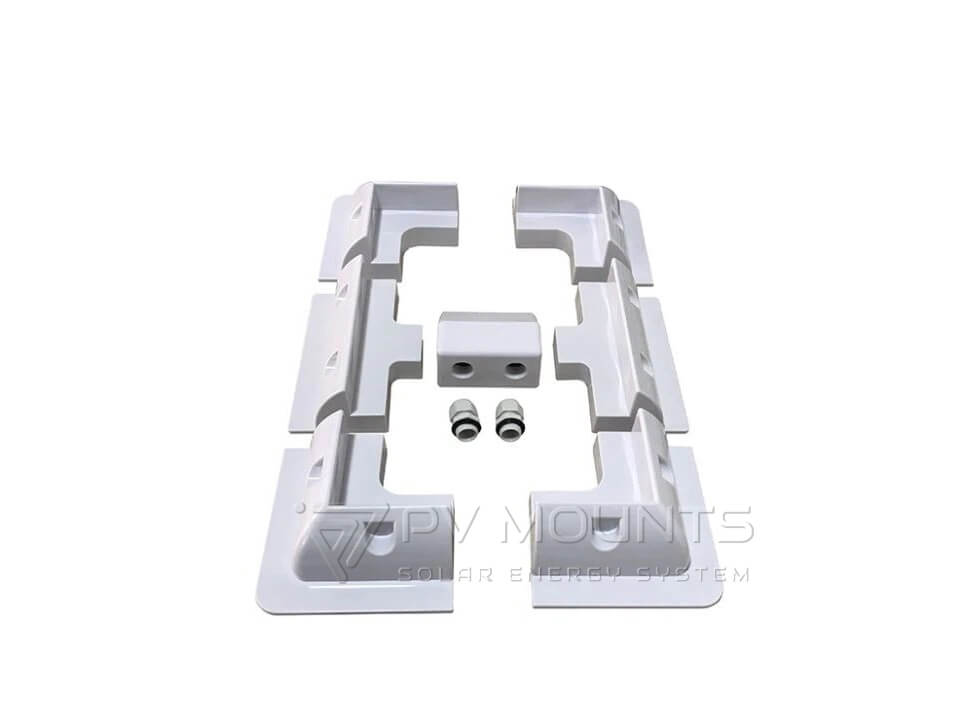

This kit includes UV-resistant ABS corner brackets and a waterproof cable entry gland—ideal for protecting panel edges, reducing wind drag, and allowing clean cable routing through roofs. Made from eco-friendly materials, available in black or white, with strong adhesion and built-in ventilation to support panel performance.
Installing solar panels on RV roofs often requires a mounting solution that is lightweight, waterproof and easy to install without damaging the roof surface.
Our drill-free design helps reduce roof leakage risk while providing strong support for solar panels during highway driving and outdoor use.
| Numéro d'article : | PVM-ABS |
| Port d'embarquement : | XIAMEN |
| Matériau | Plastique ABS |
| Couleur | White and Black |
| Nom du produit | Matériau | Quantité |
| Corner Mount | ABS | 4 |

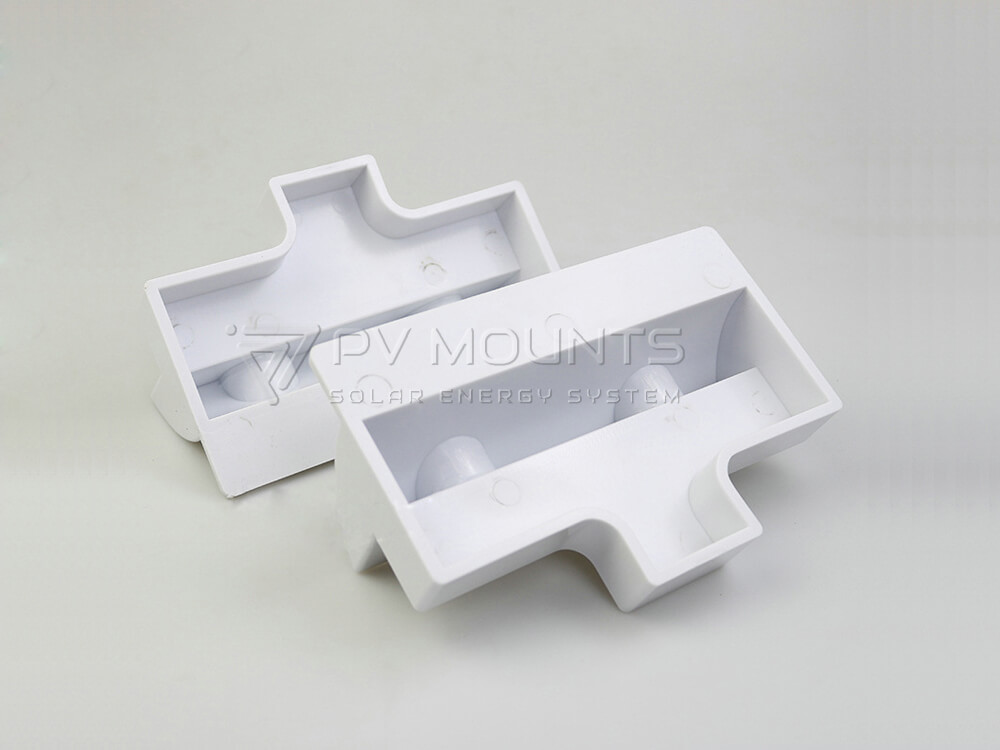

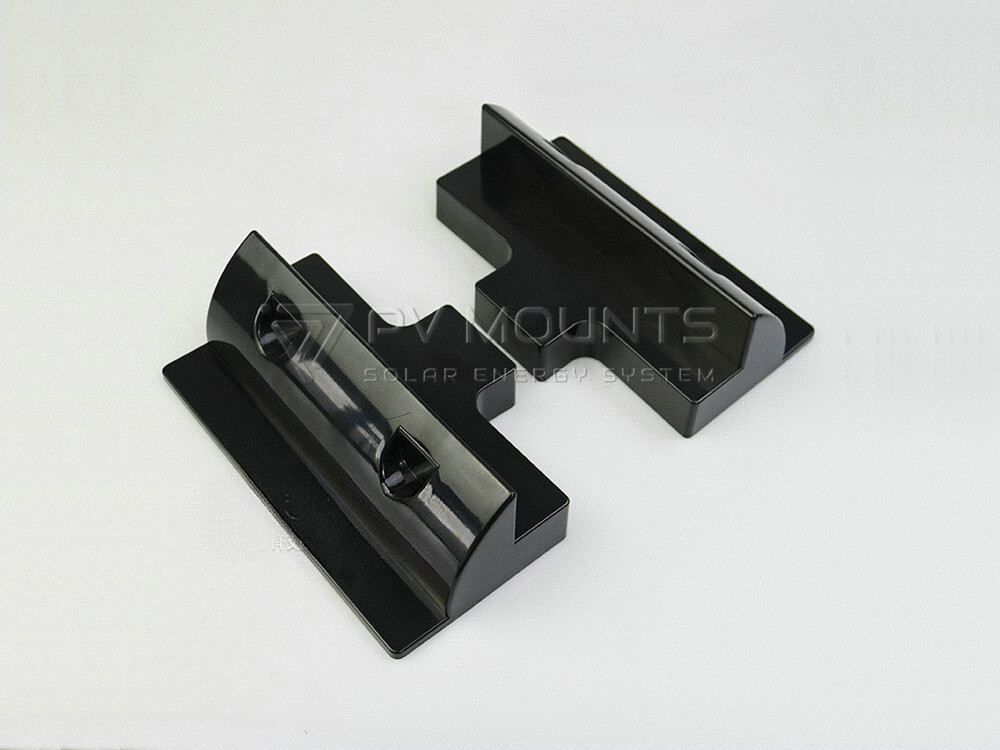

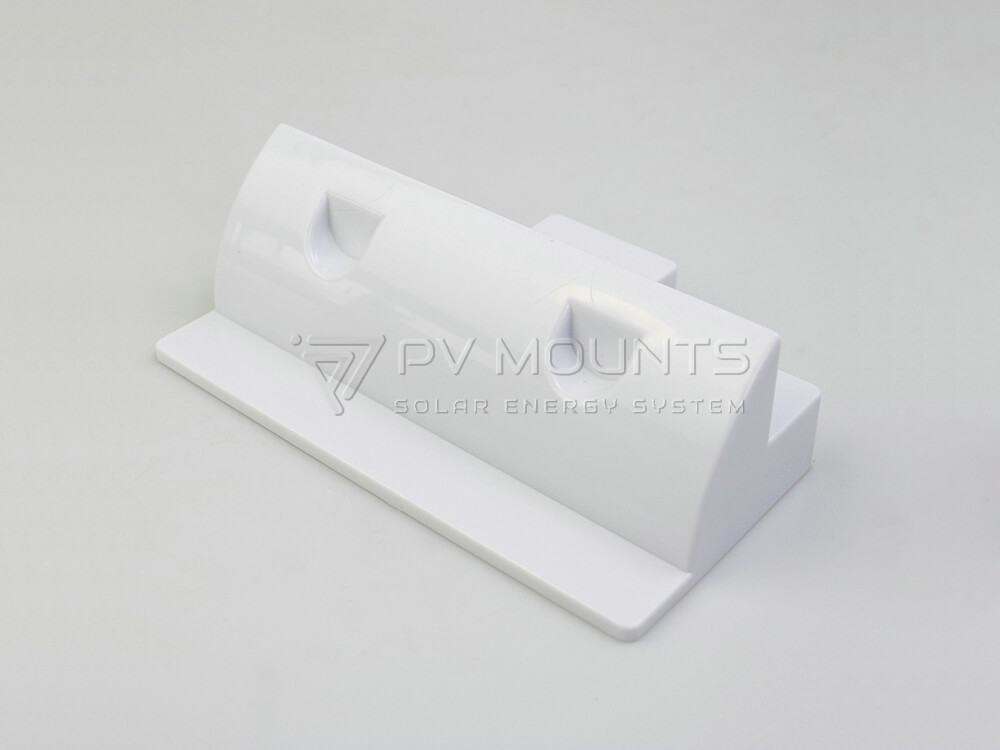

| Side Mount | ABS | 2 |
| Cable Entry Gland | ABS | 1 |
Note: Adhesive tape/glue not included.
Recommended Adhesive: Sikaflex 252 or similar.
Widely Application: Compatible with all popular solar panels in the market. Corner and side mount are designated for virtually any aluminum framed solar panels.
Drill free : 7 pcs mounts count be easily glued on with sikaflex 252
Durable: 100% UV-resistant and recyclable ABS plastic mount
Best suitable for flat roofs of aluminum, wood, or GRP material.
Easier and more flexible installation.
| Paramètres techniques | |
| Charge de vent : | Max 60m/s |
| Charge de neige : | Max 1.4KN/m |
| Solar panel type | Encadré |
| Cable Gland Diameter Range: | 6mm – 12mm |
| Application | RV,Vehicles,Caravans,Motorhomes,Boats,Flat roof, Outbuilding etc |
| Garantie : | 5 Year |
| After-sales Service | Yes |
| Standard | AS/NZS 1170.2/JIS C 8955:2017/ISO9001/UL1565/DIN 1055 |
ABS Solar Mount vs Aluminum Z Bracket
| ABS Mount | Aluminum Z Bracket |
| Drill-free installation | Requires screws |
| Better for curved RV roofs | Better for flat surfaces |
| Lightweight | Stronger load capacity |
| Cleaner appearance | More industrial |

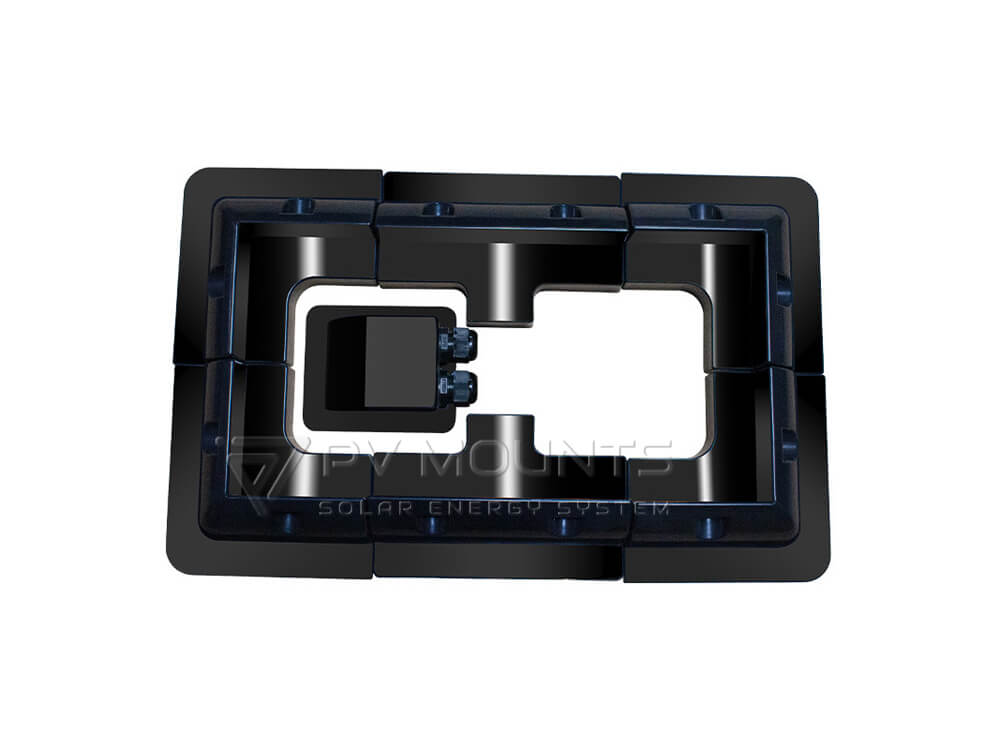

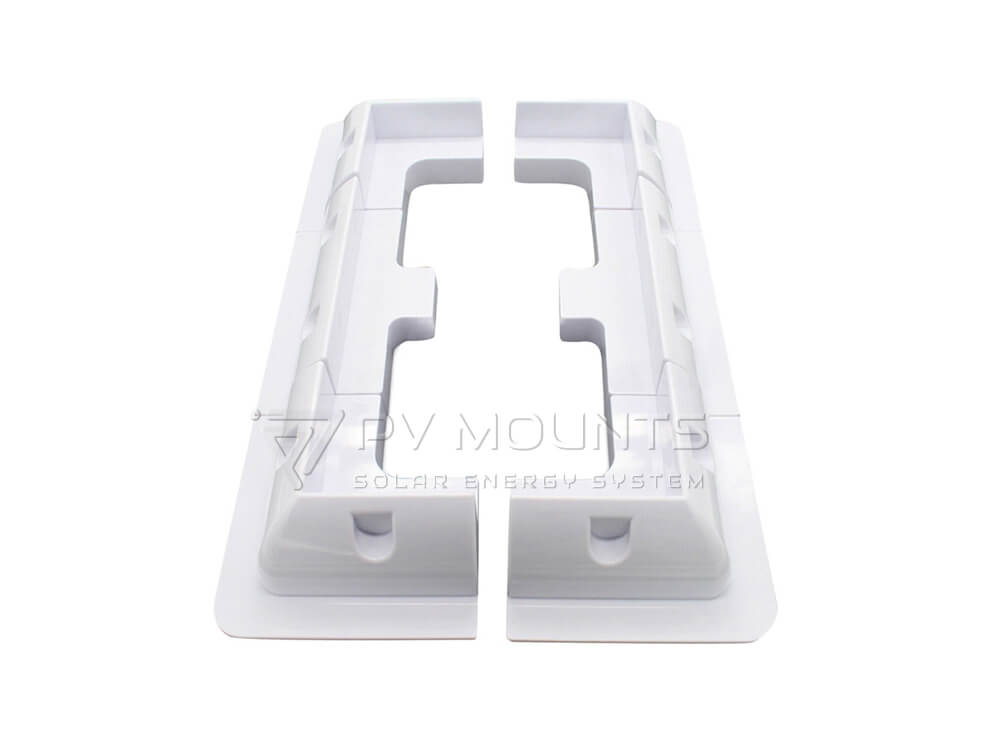

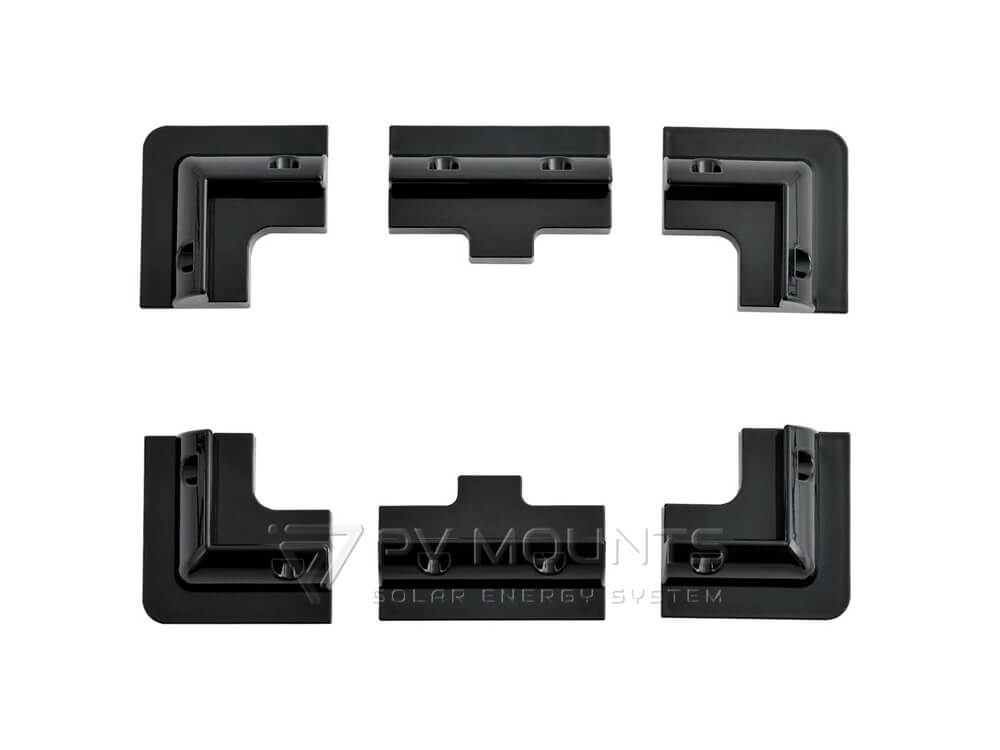

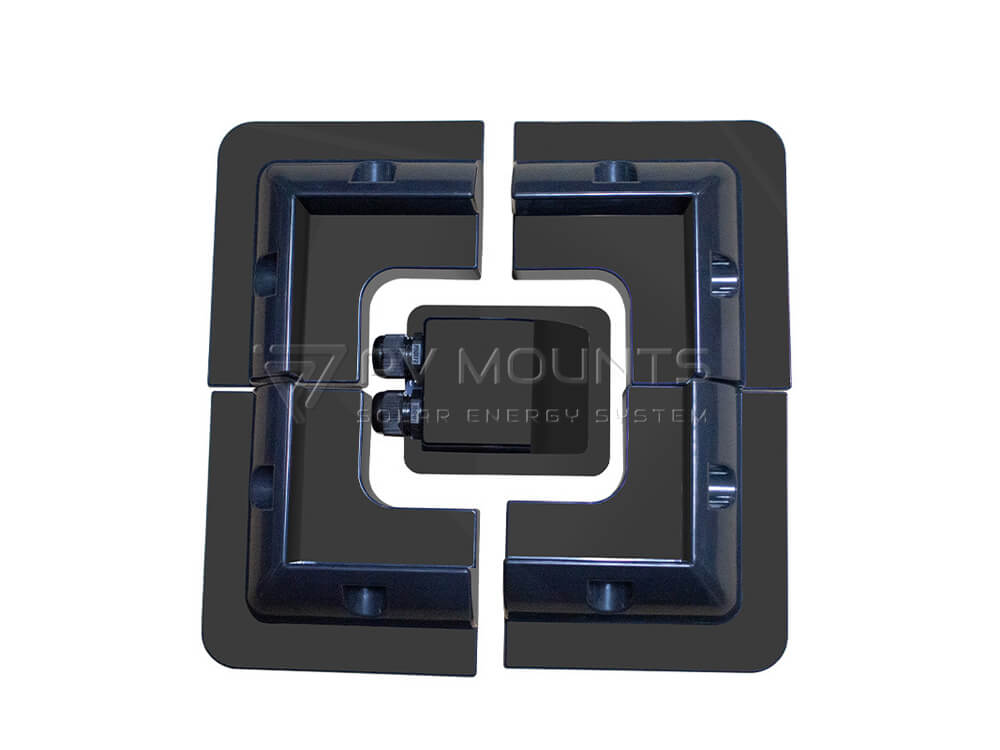

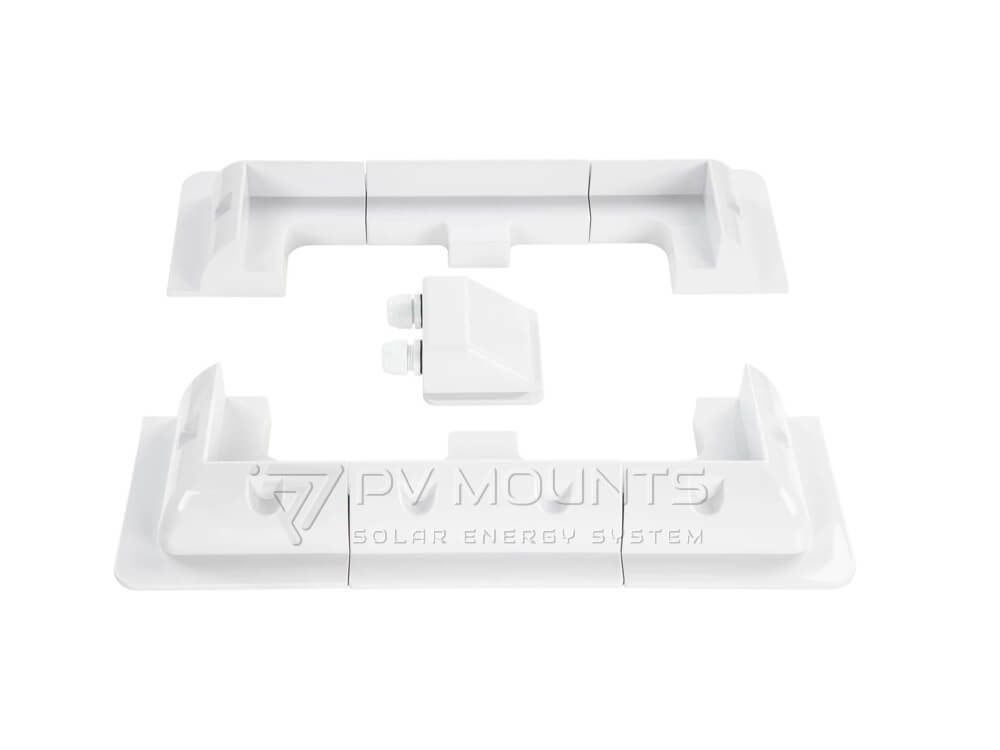

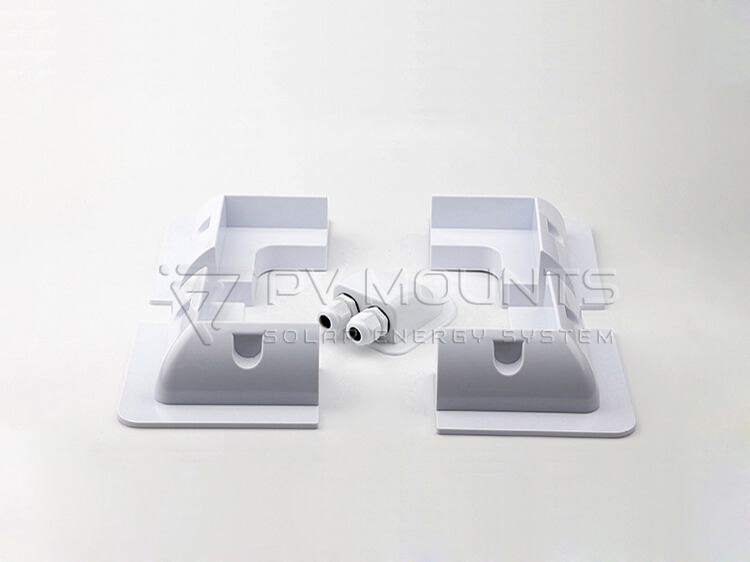

ABS Solar Mount Avilable kits:
Keywords:

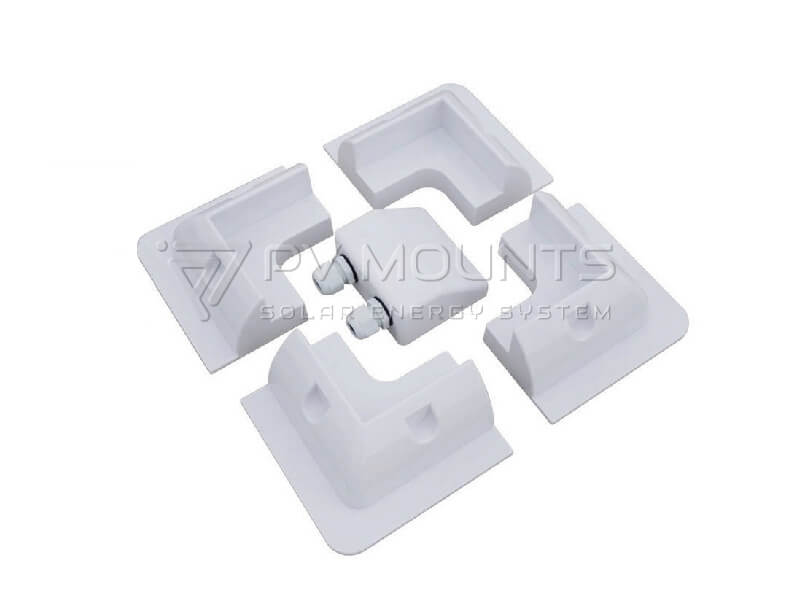

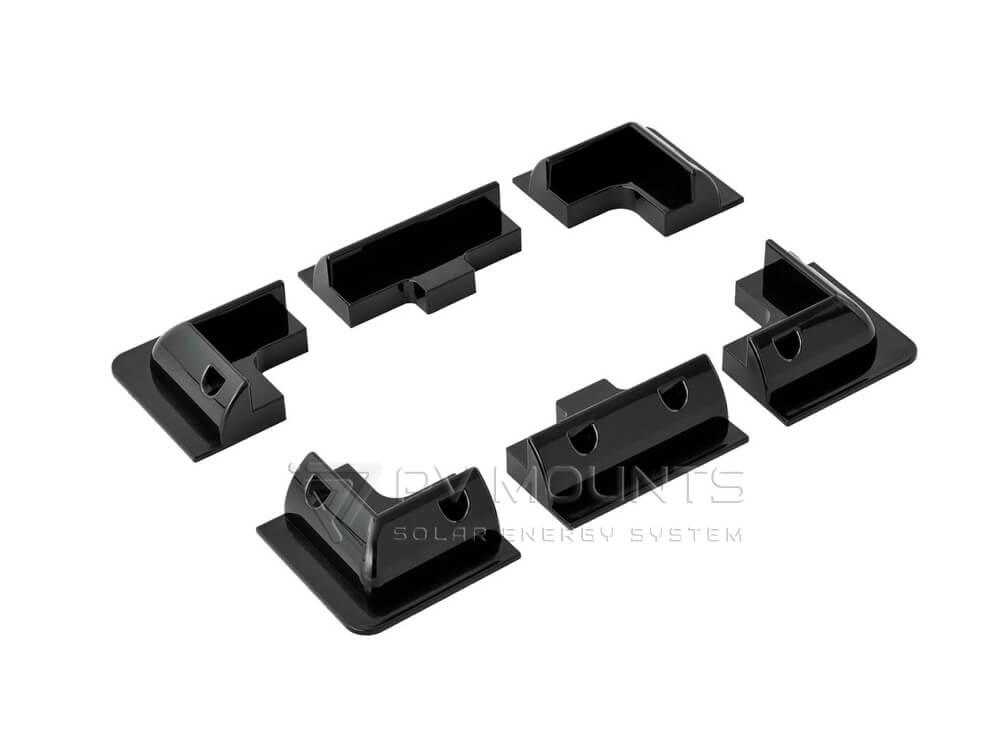

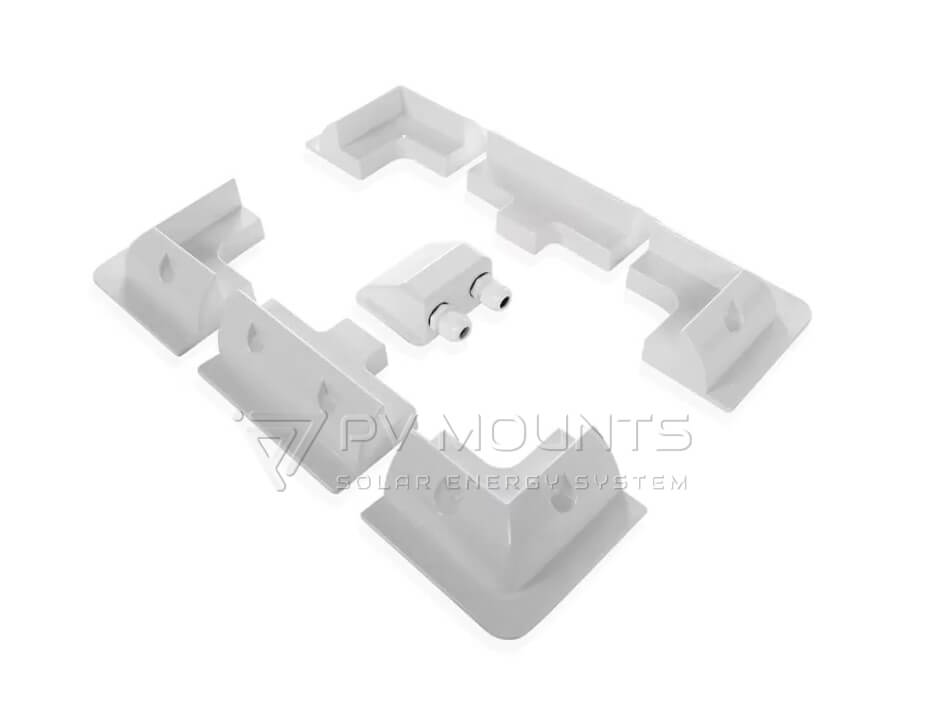

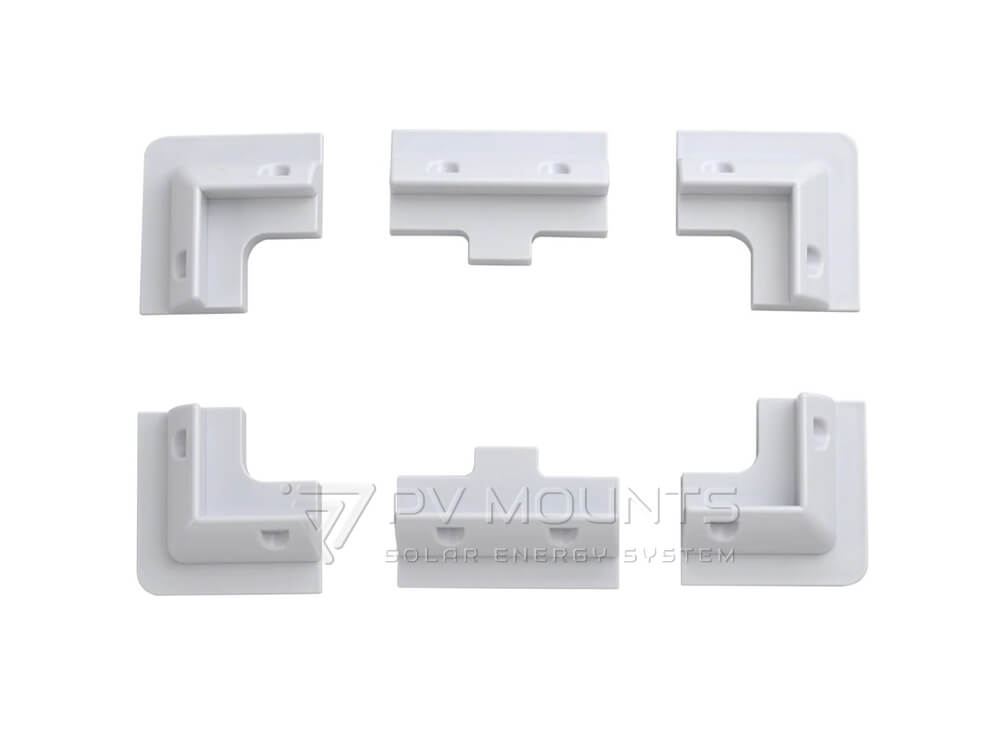

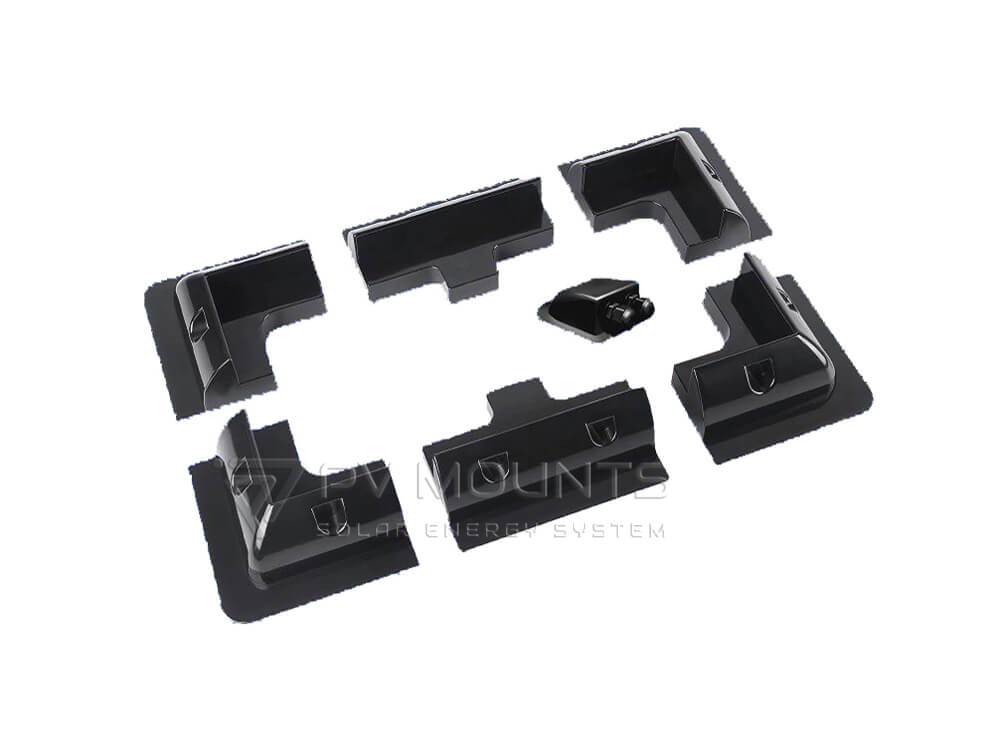

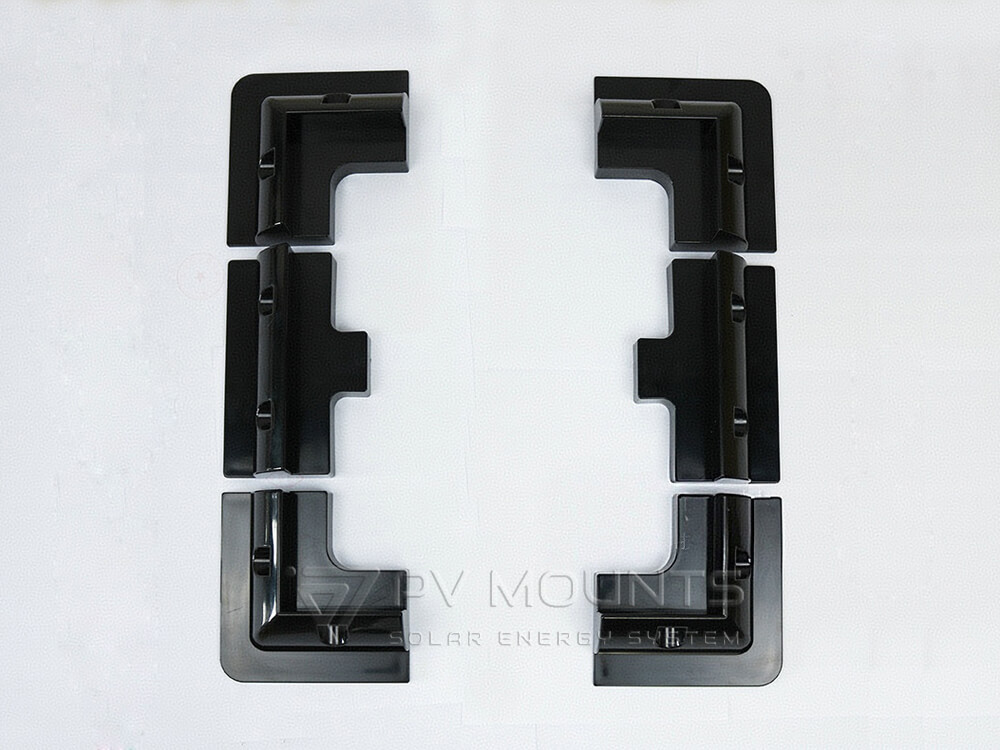

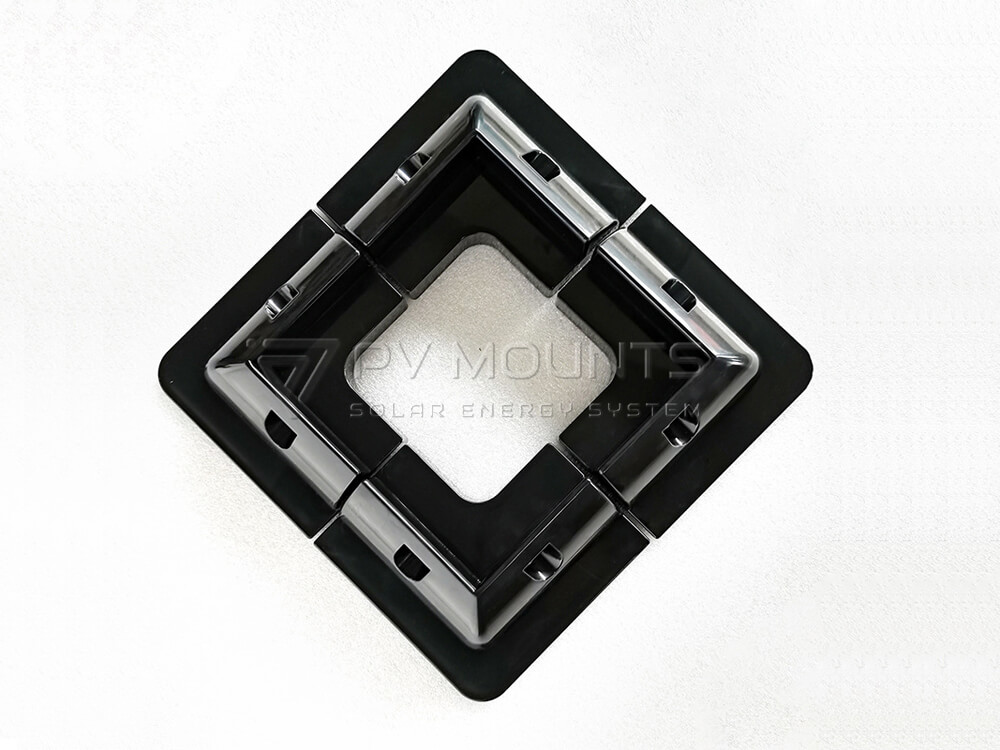

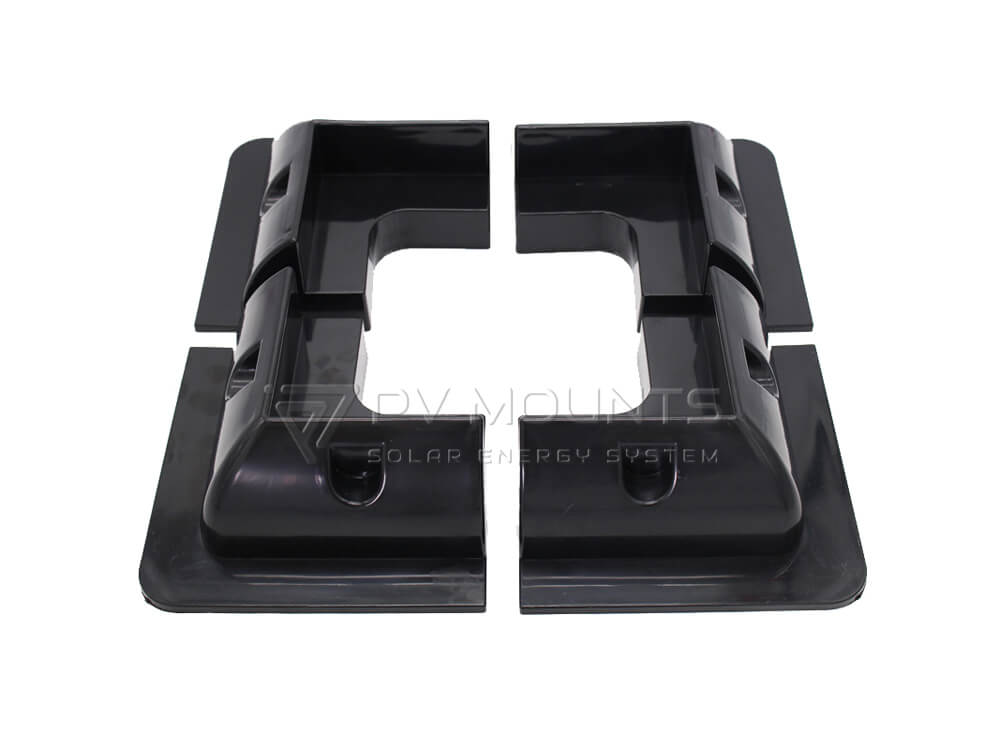

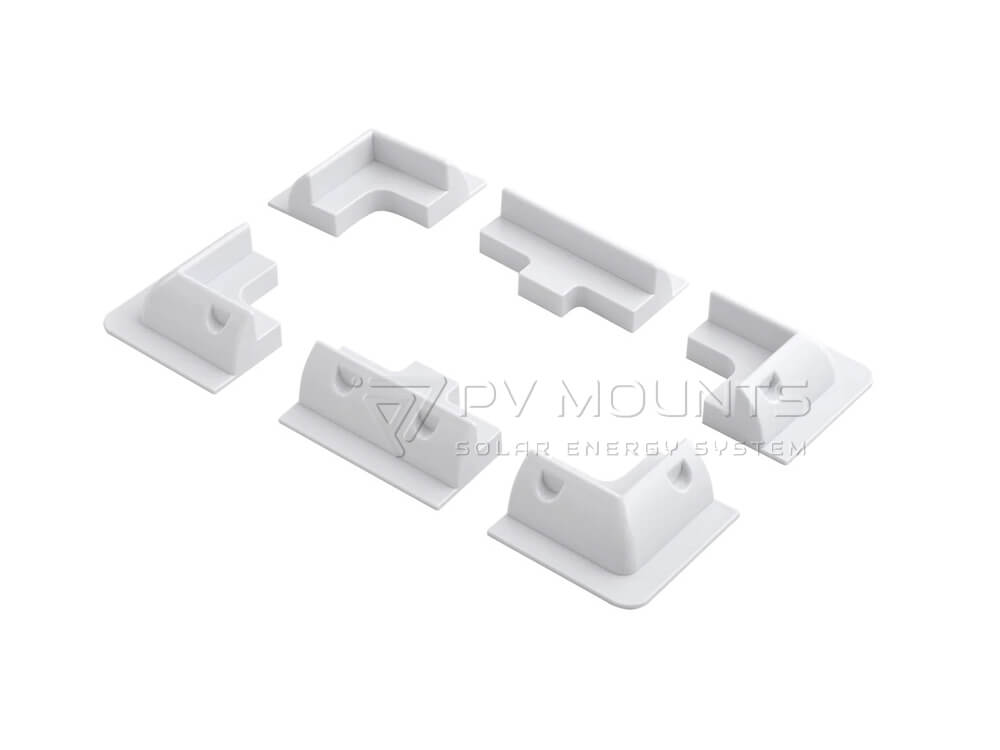

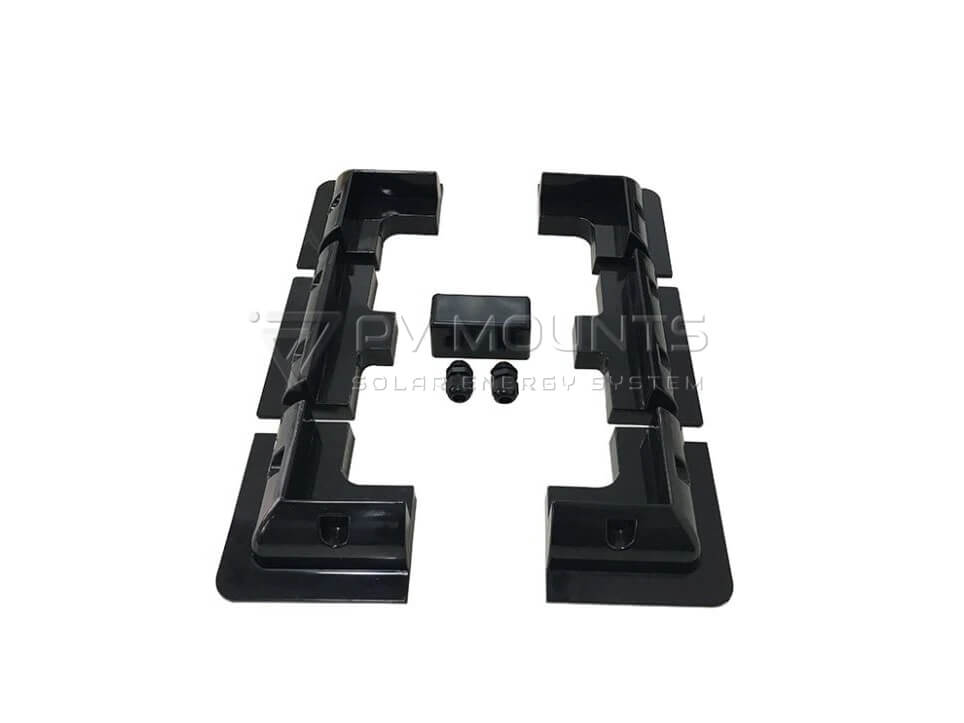

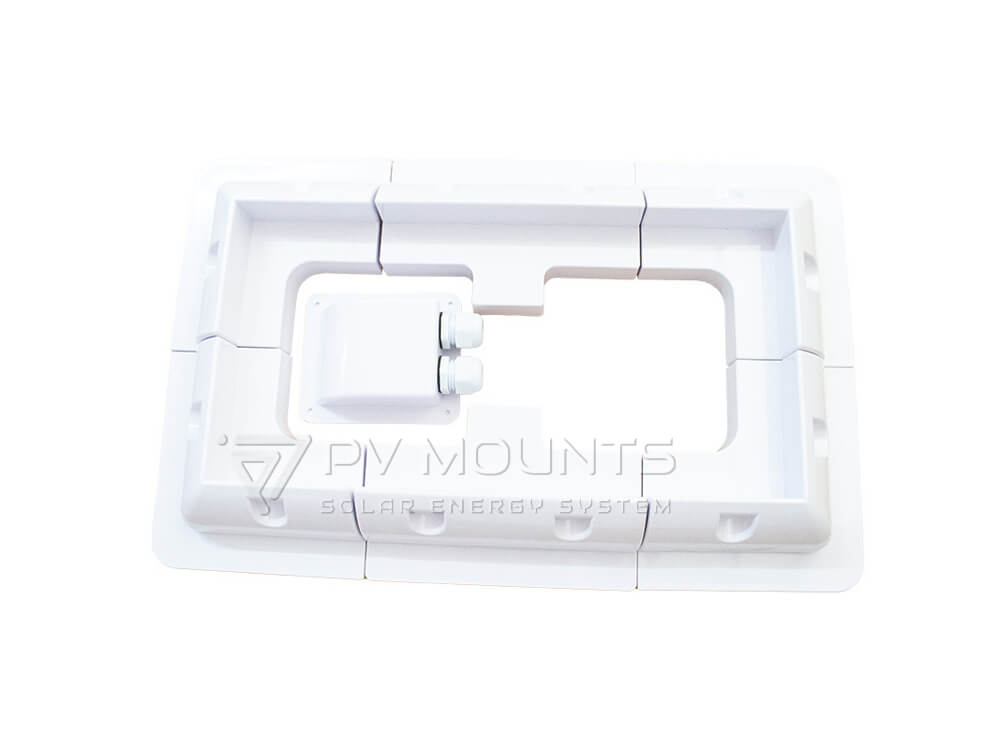

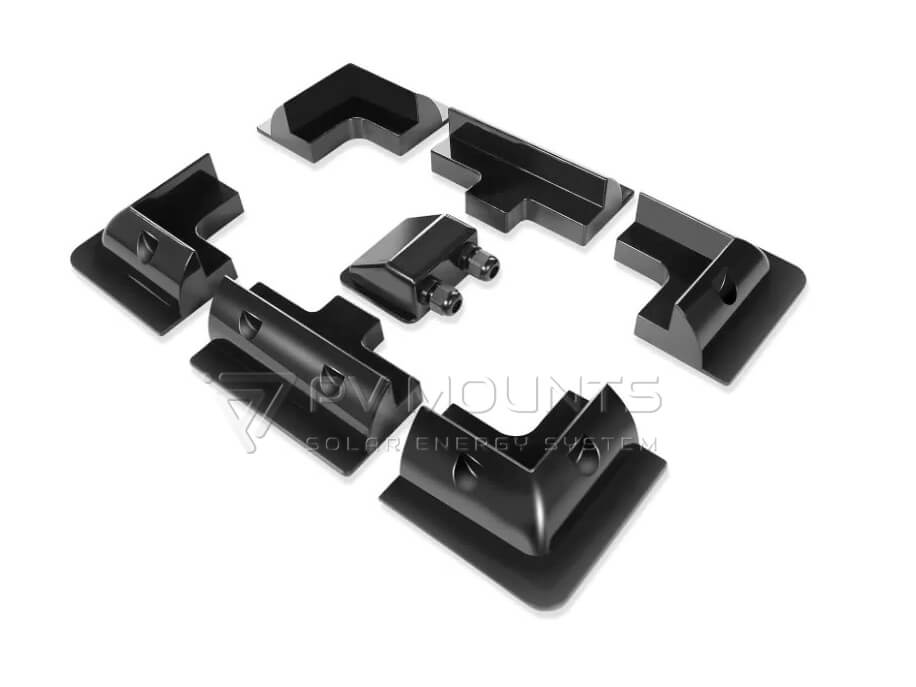

4 × ABS Corner Brackets

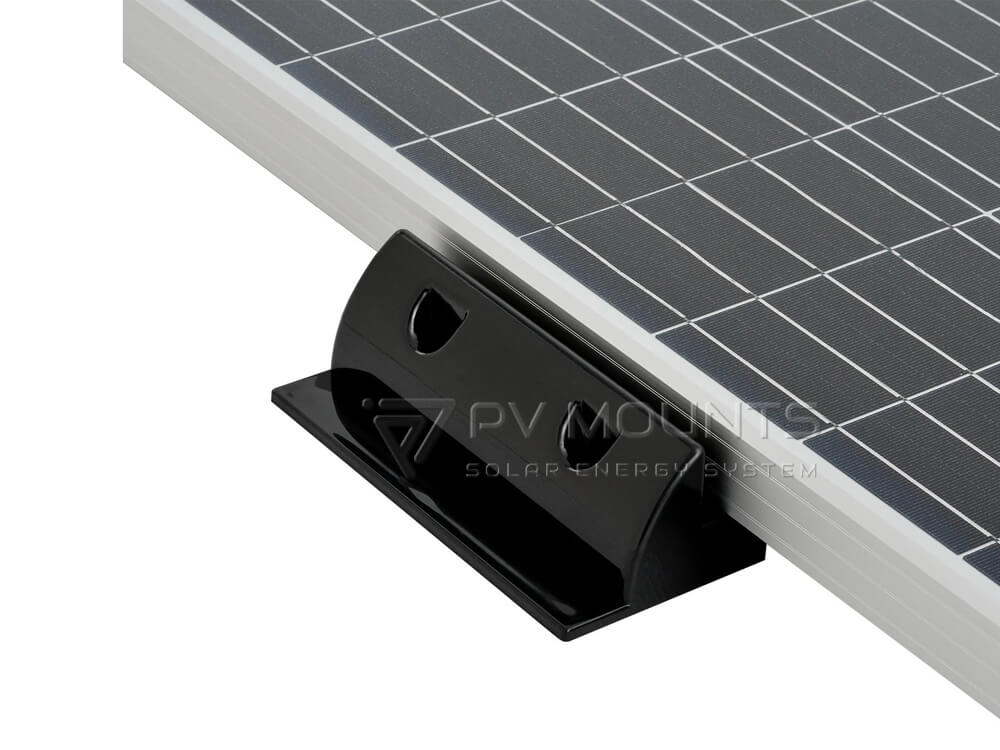

2 × ABS Side Brackets

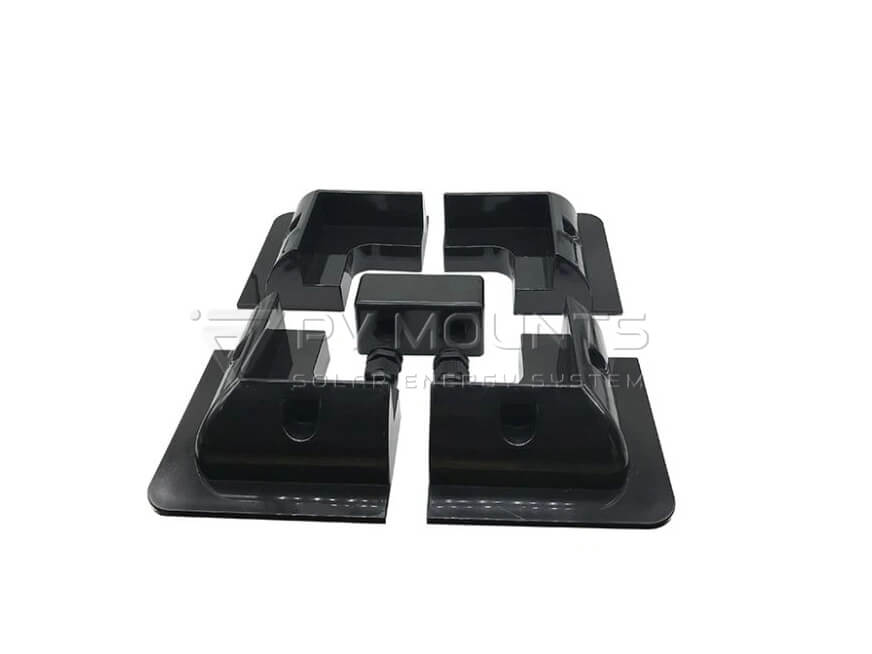

1 × Double Cable Entry Gland (Black or White)
Installation Manual (optional)
Note: Sikaflex 252 or another compatible adhesive is required (not included).
Sikaflex 252 adhesive (or equivalent UV/weather-resistant adhesive)
Cleaning cloth or alcohol wipes
Measuring tape or ruler
Marker or pencil
Optional: Masking tape and silicone sealant
Select a clean, flat surface on your RV roof, boat deck, camper, shed, or flat rooftop.
Ensure there is enough space for both the solar panel and cable routing.
Wipe down the mounting area using alcohol wipes or a clean cloth to remove dust, oil, or debris.
Let the surface dry completely before proceeding.

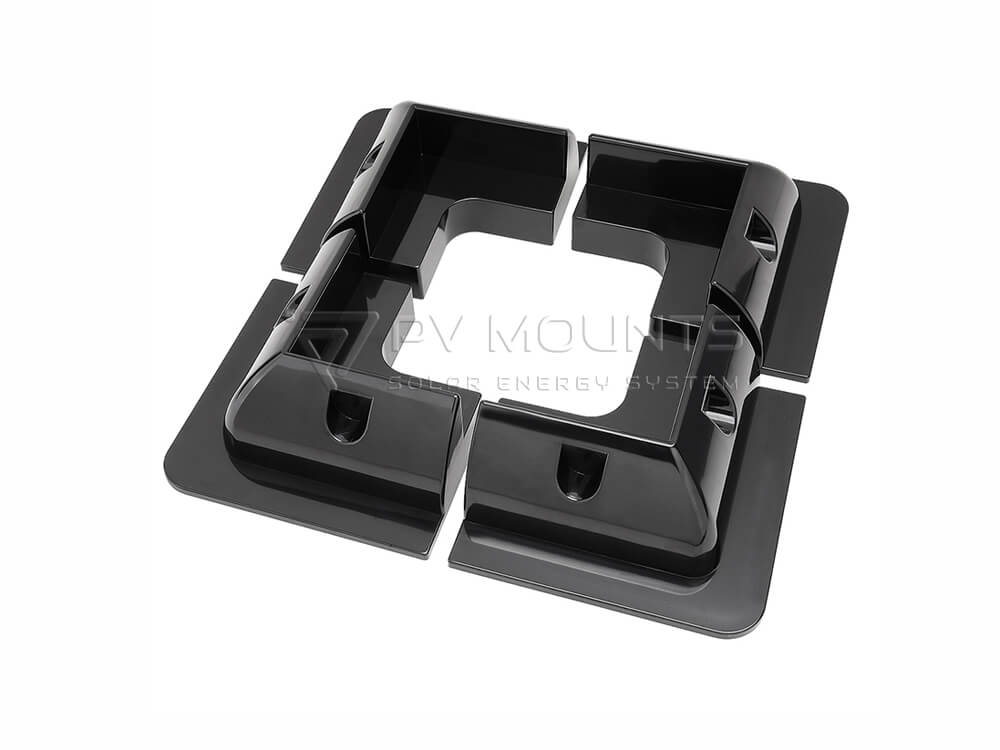

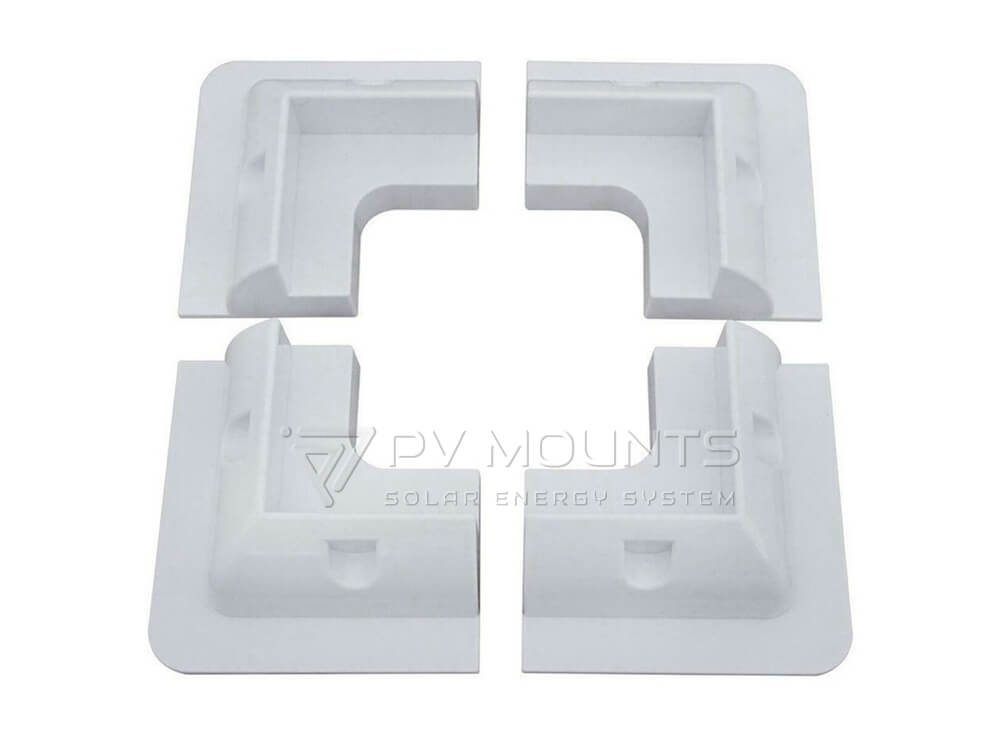

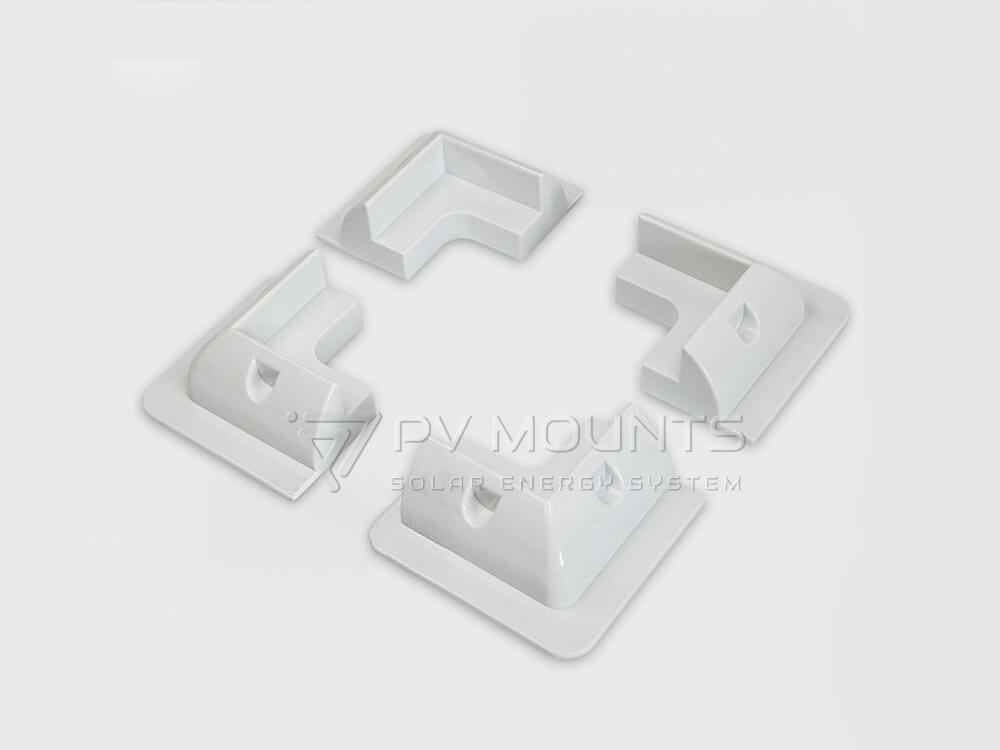

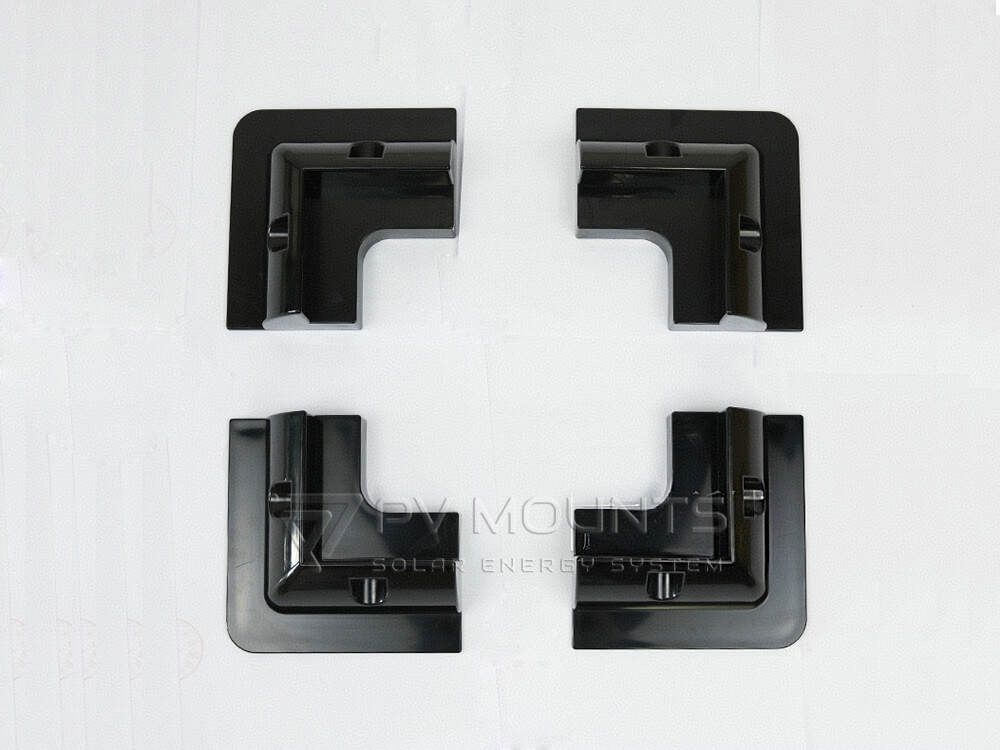

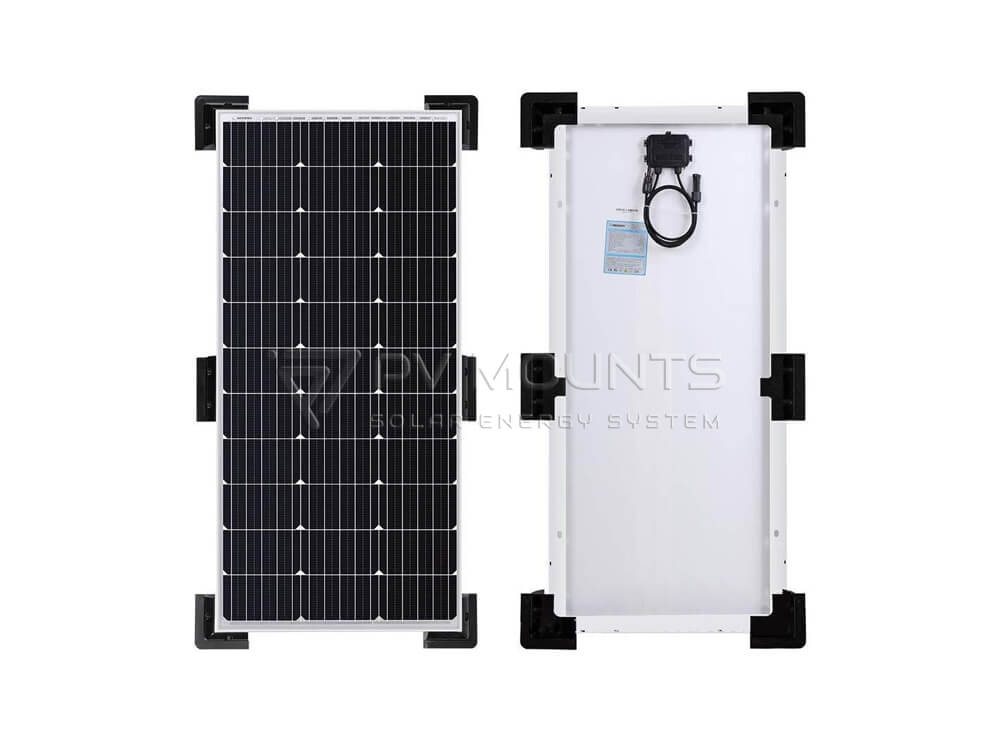

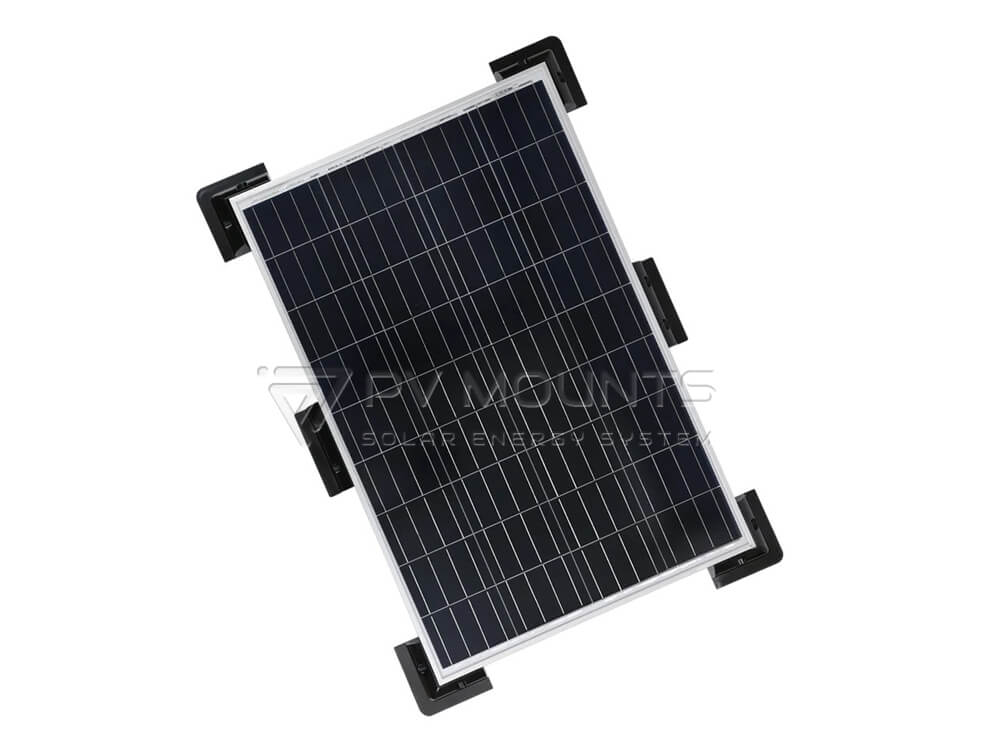

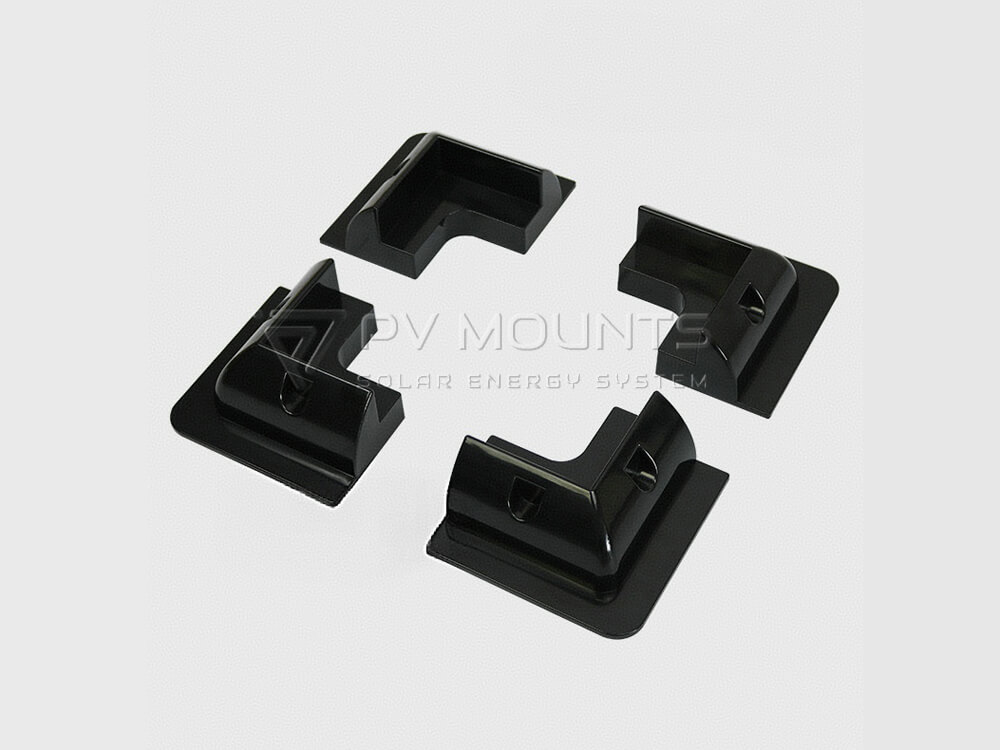

Place the 4 corner brackets at each corner of the solar panel frame.

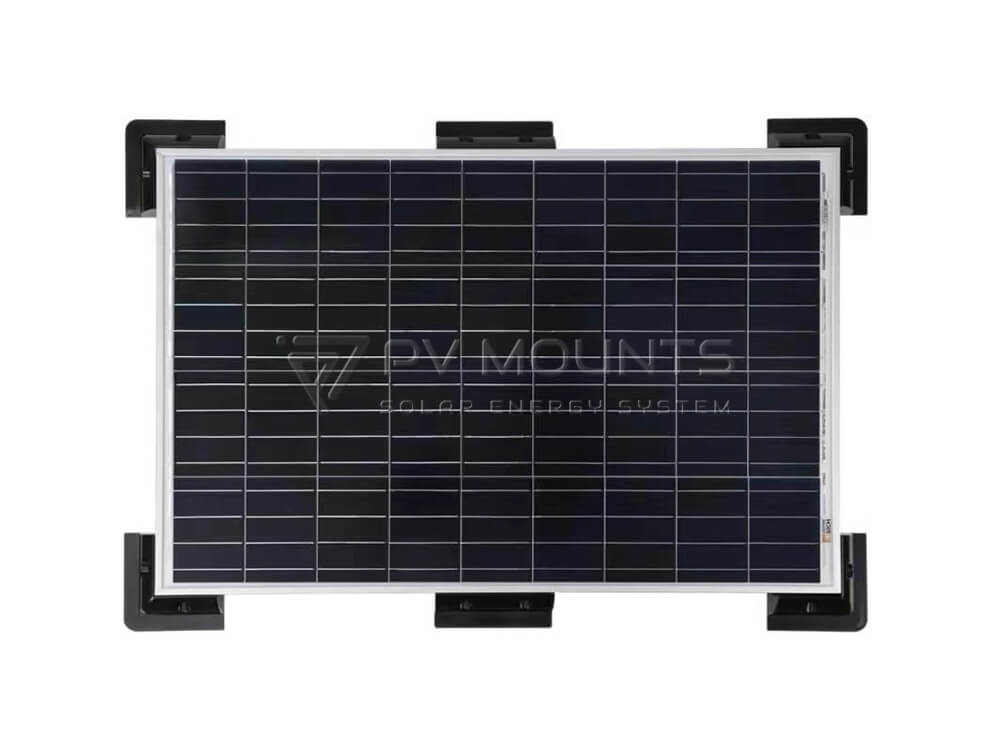

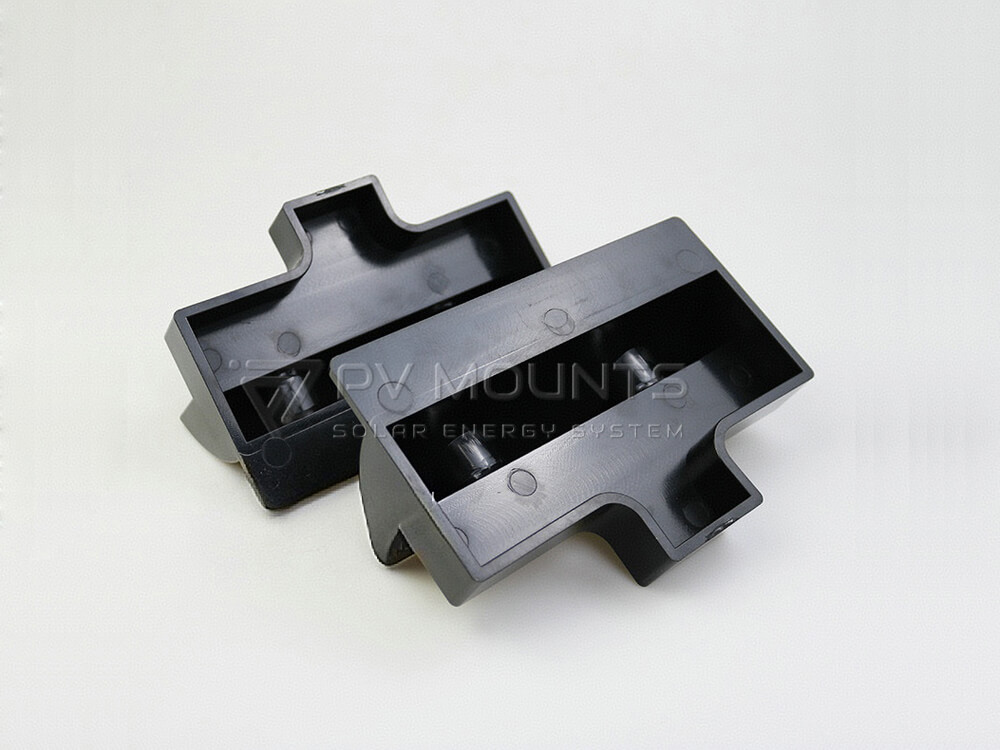

Aligner les 2 side brackets (if used) midway along the panel’s length for added stability.
Use a pencil or marker to trace their positions.
Apply a generous bead of Sikaflex 252 to the base of each bracket.
Carefully press each bracket into place on the marked areas.
Optional: Use masking tape to hold the brackets in place during curing.

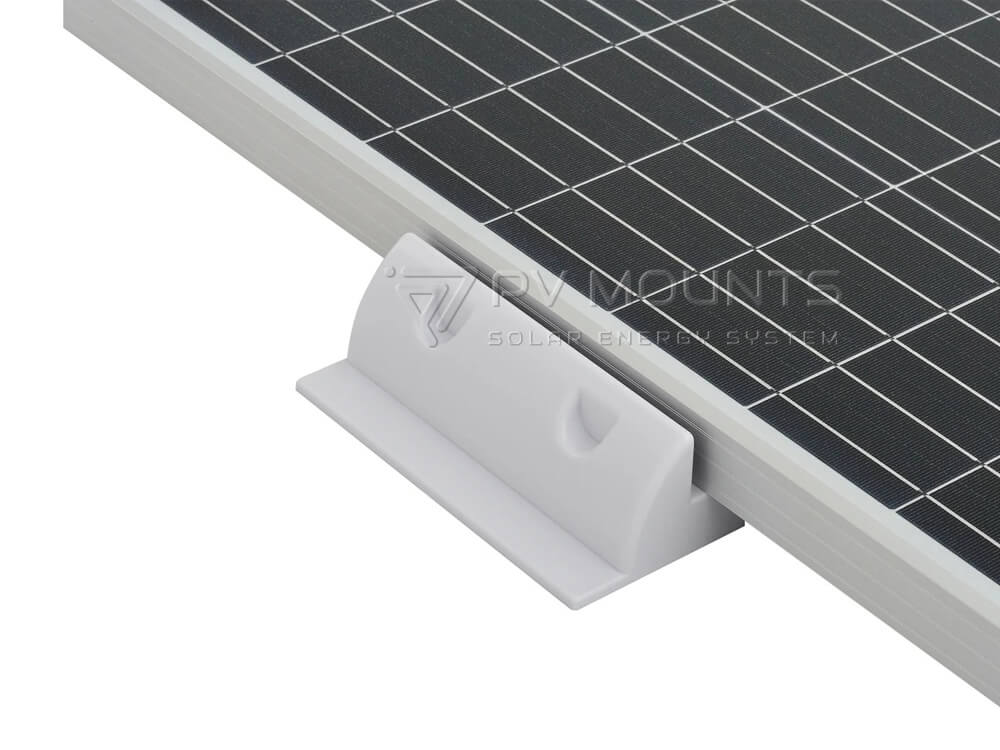

Once the brackets are fixed, place the solar panel into the mount grooves.
Most panels will self-secure within the bracket slots; check for a snug fit.
Allow adhesive to fully cure for 24 hours before moving or traveling.
Choose a location close to the solar panel for routing cables inside.
Mark and cut holes in the roof/deck if needed (only for cable routing).
Insert cables into the double ABS cable entry gland, then seal it with the included waterproof grommets.
Apply adhesive around the gland base and press firmly into place.
Use silicone sealant around cable entry if extra waterproofing is needed.
For best bonding strength, install in dry weather with temperatures above 10°C (50°F).
Avoid drilling unless absolutely necessary—this system is designed for drill-free mounting.
Routinely check the adhesive condition and cable gland tightness, especially after long trips.
One stop manufacturer specialized in solar mounting system and components for your solar mount projects.
PVMOUNTS has all kinds of solar mounting accessories designed for using on almost every roof and ground with excellent compatibility. Customized order is acceptable.
We can produce different solar panel mounted components including but not limited in:
A: Yes. ABS solar mounts are specifically designed for drill-free installation and can be securely bonded to RV roofs using high-strength adhesive sealants. Many RV owners prefer adhesive mounting because it helps reduce the risk of roof leaks caused by drilling holes.
Commonly recommended adhesives include:
These adhesives provide strong bonding performance, weather resistance, and vibration resistance for long-term outdoor use.
For best results, the roof surface should be cleaned thoroughly before applying adhesive.
A: ABS solar mounts themselves are waterproof and suitable for outdoor environments. Since the system is commonly installed without drilling, it can help minimize water leakage risks on RV and camper roofs.
The included cable entry gland is also designed with waterproof sealing to protect solar cables from rain, moisture, and dust.
For maximum waterproof performance, it is recommended to use a proper sealant around the mounting brackets and cable gland during installation.
R : Pour les produits normaux, nous n'exigeons pas de MOQ. Pour les commandes personnalisées, le MOQ est nécessaire.
A: High-quality ABS solar brackets are designed for long-term outdoor use and typically last 10–15 years or longer under normal environmental conditions.
UV-resistant ABS material helps protect the brackets from:
The actual lifespan depends on climate conditions, installation quality, and adhesive performance.
A: Yes. Properly installed ABS solar mounts are designed to withstand highway wind pressure, vibration, and outdoor travel conditions commonly experienced by RVs and camper vans.
The aerodynamic design helps reduce wind resistance during driving. When combined with high-strength adhesive sealant, the mounting system can securely hold solar panels during long-distance travel.
Correct installation and proper adhesive curing time are very important before driving the vehicle.
A: The most commonly recommended adhesives for ABS solar mounts include:
These adhesive sealants are widely used in RV and marine applications because they offer:
Always follow the adhesive manufacturer’s installation instructions and curing time recommendations.
R : Chaque responsable de la transformation vérifie la qualité en priorité avant de prendre ses fonctions. Une fois le produit terminé, l'équipe chargée de la qualité et de la conformité procède à une inspection finale détaillée avant le chargement.
A: Yes. ABS solar mounts are widely used on curved RV, camper, caravan, and boat roofs.
Compared with traditional aluminum brackets, ABS corner mounts can adapt more easily to slightly curved surfaces and provide a cleaner appearance after installation.
They are especially suitable for:
A: Both ABS solar mounts and aluminum brackets have their advantages depending on the installation application.
| ABS Mount | Aluminum Z Bracket |
| Drill-free installation | Requires screws |
| Better for curved RV roofs | Better for flat surfaces |
| Lightweight | Stronger load capacity |
| Cleaner appearance | More industrial |
ABS solar mounts are usually preferred for RV, camper, caravan, and marine solar installations where waterproof performance and simple installation are important.
Aluminum brackets are often chosen for fixed rooftop systems or installations requiring higher mechanical strength.
